SC-07-70J

Common Mode Chokes Overview

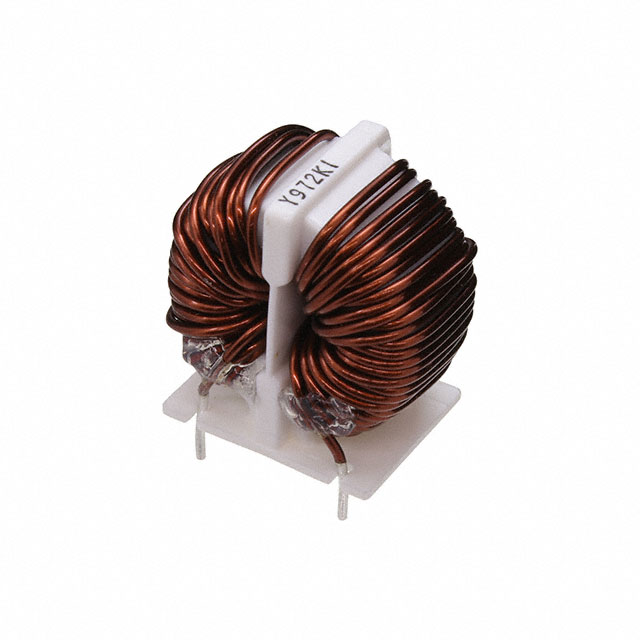

The KEMET SC-07-70J is a common mode filter from the SC-J series, designed for AC line filtering applications. It features an inductance of 7 mH at 1 kHz and supports a DC current rating of 7 A with a maximum DC resistance of 0.04 ohms. The component operates within a temperature range of -40°C to 120°C and utilizes through-hole mounting.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC lines
• Supports high DC current handling up to 7 A
• Rated for elevated operating temperatures up to 120°C

Common Mode Chokes Applications

• AC line filtering
• Common mode choke applications

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and electrical tolerances against the manufacturer's official documentation before integration. Confirm that the 7 A current rating and 0.04 ohm resistance align with the target circuit requirements. Ensure mechanical dimensions match the PCB layout constraints.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation on AC lines. The 7 mH inductance provides significant impedance to high-frequency interference. The 7 A current capability suits power supply inputs or motor drive lines where substantial DC bias is present alongside AC signals.

Common Mode Chokes Part Context

This part belongs to the SC-J series of AC line filters manufactured by KEMET. These components are engineered for general-purpose electromagnetic interference suppression in industrial and consumer electronics. The series offers standardized form factors suitable for through-hole assembly processes.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
