SC-07-D005

Common Mode Chokes Overview

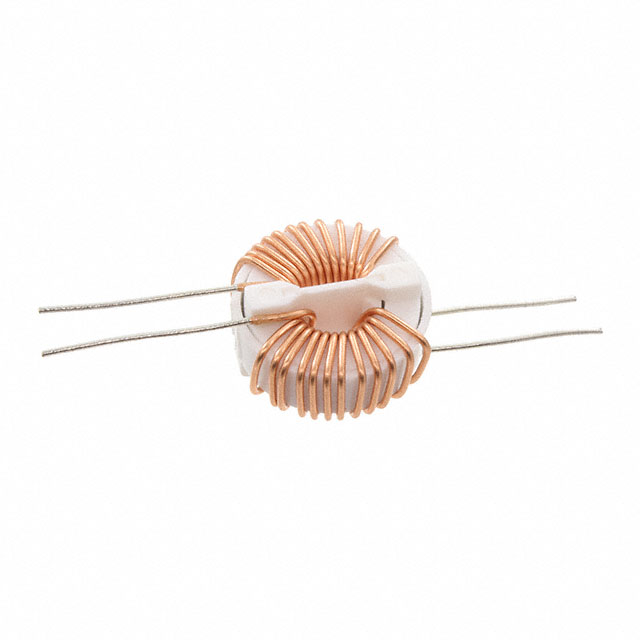

The KEMET SC-07-D005 is a through-hole common mode choke filter designed for power line applications. It features an inductance of 45 µH and supports a maximum DC current of 7 A. The component has a low direct current resistance (DCR) of 20 mΩ, ensuring minimal voltage drop and power loss during operation. Rated for 250 V, it provides effective noise suppression in two-line configurations.

Common Mode Chokes Feature Summary

• Provides common mode noise attenuation for dual-line circuits
• Supports high continuous current handling capability
• Utilizes through-hole mounting for robust mechanical attachment

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• AC/DC converter noise reduction

Common Mode Chokes Procurement Notes

Verify the manufacturer part number SC-07-D005 against official KEMET documentation to confirm specifications. Ensure compatibility with PCB hole sizes and lead spacing requirements. Check for RoHS compliance status if required by project standards. Confirm operating temperature range suitability for the intended environment.

Common Mode Chokes Selection Notes

Select this component when a 45 µH inductance at 7 A is required for common mode noise filtering. Consider the 20 mΩ DCR for efficiency calculations. Ensure the 250 V rating meets the circuit voltage requirements. Verify that through-hole mounting is feasible for the design.

Common Mode Chokes Part Context

This component belongs to the KEMET SC-D series of common mode chokes. These filters are engineered for general-purpose EMI suppression in power lines. The series offers various inductance and current ratings to suit different application needs while maintaining consistent mounting styles.

Common Mode Chokes Replacement Considerations

Cross-reference with other KEMET SC-D series parts or equivalent common mode chokes from other manufacturers. Ensure replacement components match the 45 µH inductance, 7 A current rating, and 20 mΩ DCR specifications. Verify pinout and physical dimensions for board compatibility.
