SC-08-100JM

Common Mode Chokes Overview

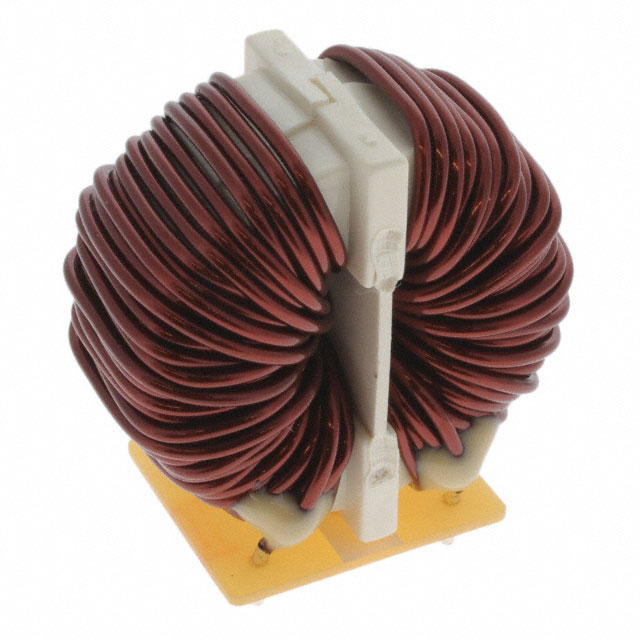

The KEMET SC-08-100JM is a through-hole common mode choke designed for power line filtering. It features an inductance of 13 mH at 100 kHz and supports a maximum DC current of 8 A with a DC resistance of 50 mOhms. Rated for 250 VAC, the component operates within a temperature range of -25°C to +120°C. This two-line filter utilizes a molded construction suitable for PCB mounting applications requiring robust electromagnetic interference suppression.

Common Mode Chokes Feature Summary

• Provides effective common mode noise attenuation for dual-line circuits
• Supports high current loads up to 8 A with low series resistance
• Engineered for stable performance across extended industrial temperature ranges

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Consumer appliance noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix and tolerance requirements against the official KEMET datasheet before ordering. Confirm that the through-hole package dimensions and lead spacing match the target PCB footprint. Ensure the selected component meets the required voltage and current ratings for the intended circuit application to guarantee long-term reliability.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for low-frequency noise suppression in AC or DC power lines. The 8 A current rating makes it suitable for higher power applications compared to smaller signal chokes. Consider the physical size constraints of the assembly process, as through-hole mounting requires specific board layout considerations compared to surface mount alternatives.

Common Mode Chokes Part Context

This part belongs to KEMET's SC series of common mode chokes, which are widely used for electromagnetic interference filtering in electronic systems. The series offers various inductance values and current ratings to suit different power line requirements. These components are essential for meeting regulatory compliance standards regarding conducted emissions in commercial and industrial electronics.

Common Mode Chokes Replacement Considerations

Direct substitutes include other KEMET SC series parts with matching 13 mH inductance and 8 A current ratings. Verify that any alternative component maintains the same 50 mOhm DC resistance and 250 VAC voltage rating to ensure equivalent circuit performance.
