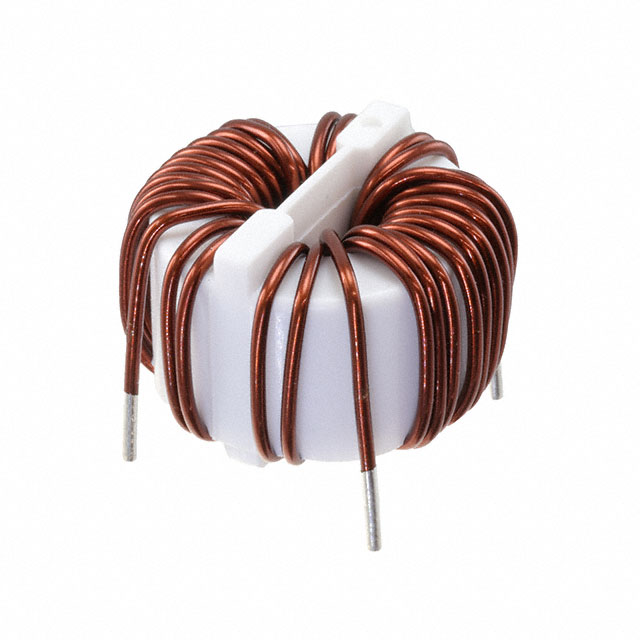

SC-08-170H is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 1.7MH 8A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-08-170H
- Description：CMC 1.7MH 8A 2LN TH
- Series：SC
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：8A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.339" Dia (34.00mm)
- Height (Max)：0.906" (23.00mm)
- Package / Case：Horizontal, No Base, 4 PC Pin
- Inductance @ Frequency：1.7 mH @ 10 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-08-170H
Common Mode Chokes Overview
The KEMET SC-08-170H is a through-hole common mode choke from the SC series, designed for AC line filtering applications. It features an inductance of 1.7 mH and supports a maximum DC current of 8 A. The component has a maximum DC resistance of 20 mOhms and operates within a temperature range of -40°C to +105°C. Constructed with proprietary ferrite cores, it provides effective noise suppression in power supply circuits.
Common Mode Chokes Feature Summary
- Utilizes proprietary ferrite core technology for enhanced magnetic performance
- Designed as a toroidal coil for efficient common mode noise filtration
- Supports high current ratings suitable for power line applications
Common Mode Chokes Applications
- AC line filters in power supplies
- Common mode noise suppression in electronic equipment
- EMI filtering for industrial control systems
Common Mode Chokes Procurement Notes
Verify the exact part number SC-08-170H against manufacturer datasheets to ensure compatibility with specific circuit requirements. Confirm that the 1.7 mH inductance and 8 A current rating align with design specifications. Check for any specific packaging or handling instructions provided by KEMET for this component type.
Common Mode Chokes Selection Notes
Select this component when high current handling and significant inductance are required for common mode noise reduction. The 1.7 mH value offers substantial filtering capability compared to lower inductance options. Ensure the operating environment stays within the -40°C to +105°C range for optimal performance and longevity.
Common Mode Chokes Part Context
This component belongs to KEMET's SC series of common mode chokes, which are widely used for EMI suppression. The SC series is known for its robust construction and reliable performance in various industrial and commercial applications. The SC-08-170H specifically targets applications requiring higher current capacity and inductance values.
Common Mode Chokes Replacement Considerations
Direct substitutes may include other KEMET SC series parts with similar inductance and current ratings, such as SC-08-200B. Verify electrical parameters and physical dimensions before substitution to ensure board compatibility and functional equivalence.
