SC-08-20J

Common Mode Chokes Overview

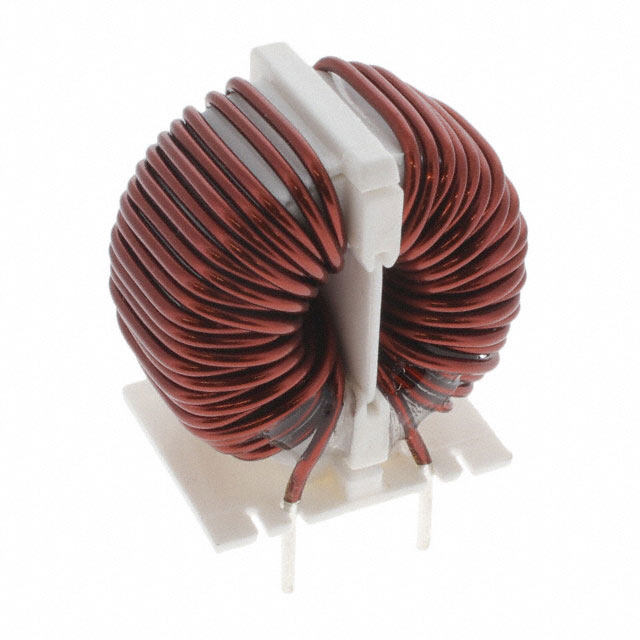

The KEMET SC-08-20J is a through-hole common mode choke designed for power line filtering. It features a toroidal core construction with two lines and an inductance of 2 mH at 100 kHz. The component supports a maximum DC current of 8 A and has a maximum DC resistance of 50 mOhms. Rated for 250 VAC, it operates within a temperature range of -25°C to +120°C.

Common Mode Chokes Feature Summary

• Toroidal core design for high permeability and ultra-high inductance
• Through-hole mounting for robust mechanical stability
• Two-line configuration for effective common mode noise suppression

Common Mode Chokes Applications

• Three-phase power line filtering
• Industrial equipment EMI suppression
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with KEMET or authorized distributors before procurement. Confirm that the 50 mOhm DCR specification aligns with your thermal management requirements. Ensure the through-hole footprint dimensions match your PCB layout constraints. Cross-reference the part number against official KEMET catalogs to avoid counterfeit components.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 8 A is required alongside significant common mode noise attenuation. The wide operating temperature range suits industrial environments. Compare its physical dimensions against available board space. Consider the toroidal geometry for compactness compared to other choke types offering similar performance metrics.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-J series of through-hole common mode chokes. The series utilizes toroidal coils with nanocrystalline metal cores to achieve superior magnetic properties. These components are engineered for demanding power applications where size and efficiency are critical factors in system design.

Common Mode Chokes Replacement Considerations

Check KEMET's official substitution guide for equivalent parts within the SC series. Verify that any alternative maintains the 2 mH inductance and 8 A current rating. Ensure the replacement fits the same through-hole package and meets the 250 VAC voltage requirement.
