SC-08-D060

Common Mode Chokes Overview

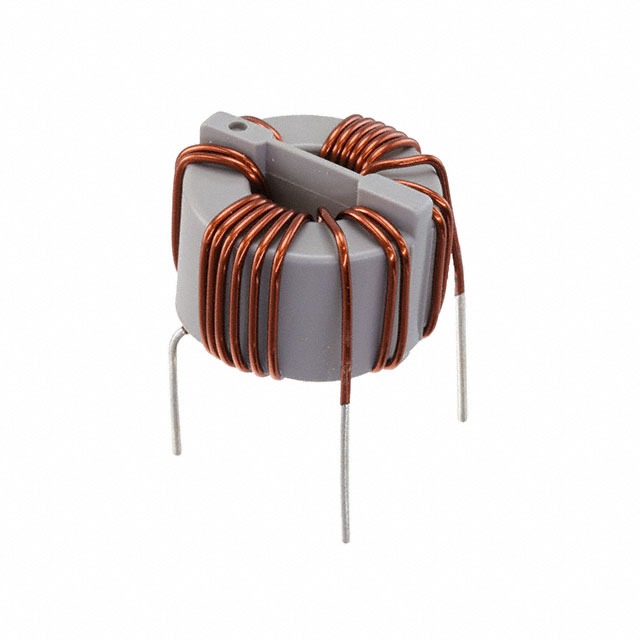

The KEMET SC-08-D060 is a common mode choke filter designed for AC line applications. It features an inductance of 60 µH and supports a maximum DC current of 8 A. The component has a maximum DC resistance (DCR) of 30 mOhms and operates within a temperature range of -25°C to +105°C. Rated for 250 V, it utilizes a through-hole mounting style with dimensions of 34.0 mm length, 23.0 mm width, and 15±2.0 mm height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Supports high current handling up to 8 A
• Designed for through-hole PCB integration

Common Mode Chokes Applications

• AC line filtering
• Power supply input stages
• EMI suppression in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SC-08-D060 to confirm mechanical tolerances and electrical ratings. Ensure compatibility with through-hole assembly processes. Check RoHS compliance status as indicated in official documentation. Confirm lead-free soldering requirements if applicable. Validate that the 60 µH inductance meets circuit design specifications.

Common Mode Chokes Selection Notes

Select this component when a 60 µH common mode choke is required for 8 A applications. Consider the 30 mOhm DCR for efficiency calculations. The 250 V rating suits standard AC line voltages. Verify space constraints against the 34x23x15 mm footprint. Ensure operating temperatures fall within the -25°C to +105°C range.

Common Mode Chokes Part Context

The SC-08-D060 belongs to the KEMET SC-D series of common mode chokes. This series offers various inductance values and current ratings for different power line filtering needs. The SC-D series is characterized by its robust construction and suitability for high-frequency noise attenuation in power electronics.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
