SC-08-E075J

Common Mode Chokes Overview

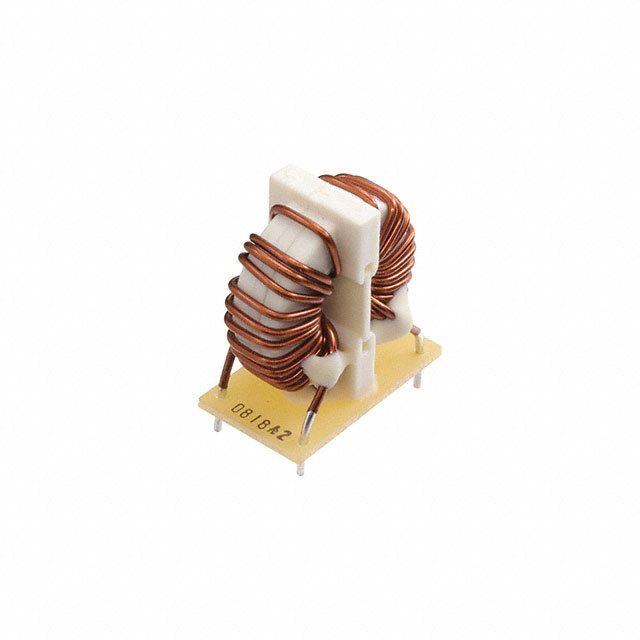

The KEMET SC-08-E075J is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 0.75 mH (750 µH) measured at 10 kHz and supports a maximum DC current rating of 8 A. The component has a maximum DC resistance of 0.0127 Ohms and operates within a temperature range of -40°C to +120°C. Rated for 250 VAC, it utilizes a single-channel configuration with PCB mount installation.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Supports high current handling up to 8 A
• Designed for through-hole PCB mounting

Common Mode Chokes Applications

• AC line filters
• Power supply input stages
• EMI suppression in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SC-08-E075J to confirm mechanical dimensions and thermal characteristics. Ensure the application voltage does not exceed the 250 VAC rating. Confirm that the 8 A current rating aligns with the peak load requirements of the target circuit design before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for high-current AC line filtering. The 0.75 mH inductance offers effective attenuation for common mode interference. Consider the physical size constraints as it requires sufficient board space for its leaded package and height profile compared to surface-mount alternatives.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode chokes. These components are engineered for robust performance in power electronics. The SC series typically provides reliable EMI filtering for mains-powered devices, ensuring compliance with electromagnetic compatibility standards in various electronic assemblies.

Common Mode Chokes Replacement Considerations

Check for direct substitutes with identical 0.75 mH inductance and 8 A current ratings. Verify pin compatibility and housing dimensions to ensure mechanical fit without redesigning the PCB footprint.
