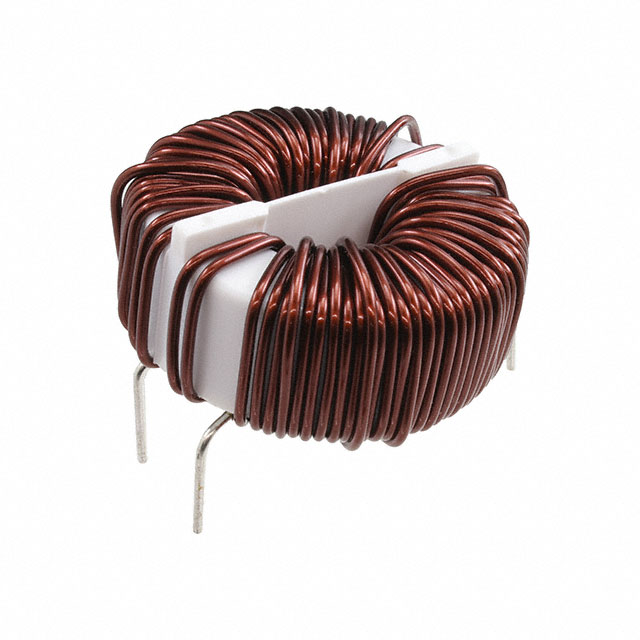

SC-10-1000 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 10MH 10A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-10-1000
- Description：CMC 10MH 10A 2LN TH
- Series：SC
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：35mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.244" Dia (57.00mm)
- Height (Max)：1.181" (30.00mm)
- Package / Case：Horizontal, No Base, 4 PC Pin
- Inductance @ Frequency：10 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-10-1000
Common Mode Chokes Overview
The KEMET SC-10-1000 is a three-phase common mode choke designed for power line filtering. It features a toroidal construction with proprietary ferrite cores, offering high inductance and permeability. The component supports a DC current rating of 10A and operates within a temperature range of -40°C to +120°C. Key electrical parameters include an inductance of 10mH and a maximum DC resistance of 0.035 ohms.
Common Mode Chokes Feature Summary
- Toroidal design utilizing proprietary ferrite cores for enhanced magnetic performance
- High inductance characteristics suitable for effective noise suppression
- Robust construction supporting high continuous current loads
Common Mode Chokes Applications
- Three-phase power line filtering
- Industrial equipment EMI suppression
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific datasheet version to confirm exact physical dimensions and terminal configurations. Ensure the operating environment temperature remains within the specified -40°C to +120°C range. Confirm that the required inductance value aligns with system noise attenuation needs before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when three-phase common mode filtering is required with high current capacity. The 10A rating and low DC resistance make it suitable for applications where power efficiency and thermal management are critical. Compare against other SC series variants if different inductance values or current ratings are needed.
Common Mode Chokes Part Context
The SC series from KEMET includes various common mode chokes with toroidal ferrite cores. These components are engineered for wide variety of characteristics, providing reliable performance in demanding electromagnetic interference environments across industrial and commercial sectors.
Common Mode Chokes Replacement Considerations
Check KEMET SCF-X series coils for alternatives featuring ultra-high inductance and nanocrystalline metal cores. Verify compatibility with existing mounting constraints and electrical specifications before substitution.
