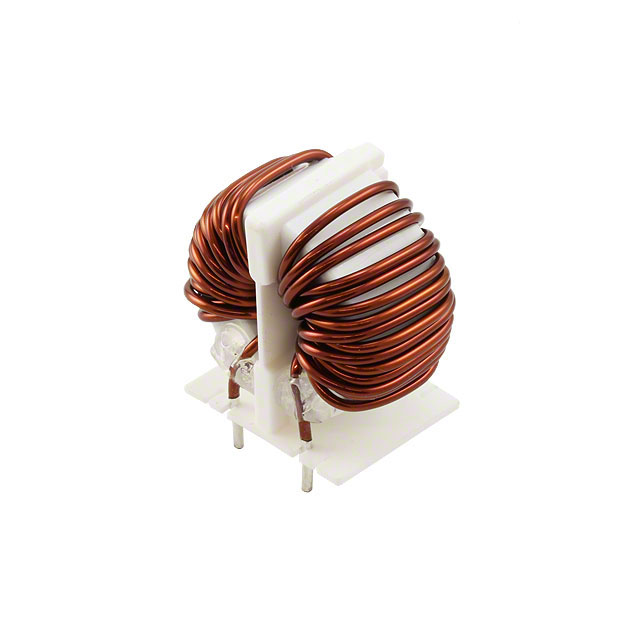

SC-10-10J is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 1MH 10A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for SC-10-10J
- Description：CMC 1MH 10A 2LN TH
- Series：SC-J
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.339" L x 0.906" W (34.00mm x 23.00mm)
- Height (Max)：1.299" (33.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1 mH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for SC-10-10J
Common Mode Chokes Overview
The KEMET SC-10-10J is a common mode filter designed for through-hole mounting. It features an inductance of 1 mH and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 20 mΩ and operates within a temperature range of -25 °C to +105 °C. Rated for 250 V, it utilizes ferrite core material and meets UL94 V-0 flammability standards.
Common Mode Chokes Feature Summary
- Utilizes high-permeability ferrite materials (5H, 7H, or 10H) for effective noise suppression
- Engineered for operation in the frequency range of 150 kHz and above
- Constructed with UL94 V-0 rated base and cover components for enhanced safety
Common Mode Chokes Applications
- Power supply input filtering
- Industrial equipment EMI suppression
- Utility infrastructure signal protection
Common Mode Chokes Procurement Notes
Verify the specific ferrite grade (5H, 7H, or 10H) required for your application, as this may vary by production batch. Confirm that the through-hole package dimensions align with your PCB layout constraints. Ensure the operating environment remains within the specified -25 °C to +105 °C range to maintain performance integrity.
Common Mode Chokes Selection Notes
Select this component when high current handling up to 10 A is required alongside significant common mode noise attenuation. The low DC resistance minimizes power loss in the circuit path. Consider the physical size and lead spacing if space is limited on the target board.
Common Mode Chokes Part Context
This part belongs to the KEMET SC series of common mode chokes. The series offers various sizes and specifications to accommodate different current and inductance requirements. These components are widely used in applications demanding robust electromagnetic interference mitigation.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers.
