SC-10-200

Common Mode Chokes Overview

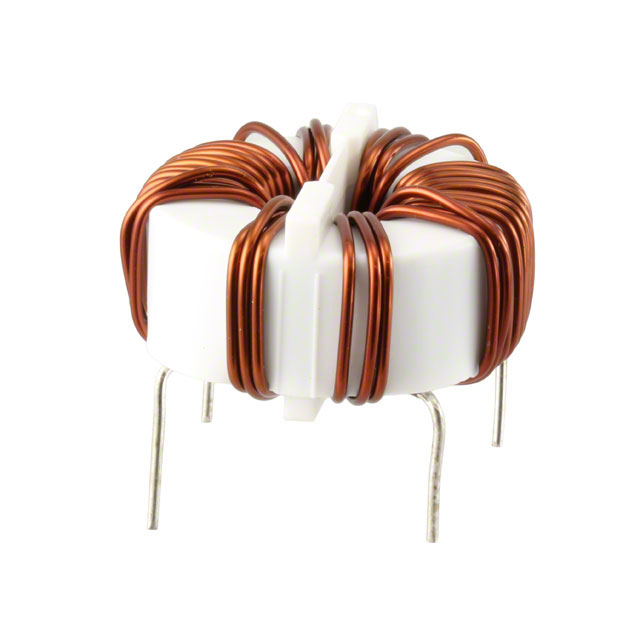

The KEMET SC-10-200 is a through-hole common mode choke belonging to the SC series. It features an inductance of 2 mH and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 28 mΩ and operates within a temperature range of -25 °C to +120 °C. Rated for 250 VAC, it utilizes a ferrite core and is designed for PCB mounting.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression via a two-channel through-hole design.
• Utilizes a ferrite core material for effective electromagnetic interference filtering.
• Supports high current applications with a rated capacity of 10 A.

Common Mode Chokes Applications

• Power supply input filtering
• Electromagnetic interference suppression in electronic circuits
• Common mode noise reduction in AC power lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and thermal characteristics. Ensure the procurement documentation matches the SC-10-200 designation precisely. Confirm compliance with relevant safety standards required for the target application environment before finalizing acquisition.

Common Mode Chokes Selection Notes

Select this component when a 2 mH inductance value is required for common mode noise attenuation. The 10 A current rating suits moderate power applications. Verify that the through-hole package dimensions fit the available PCB space and that the operating temperature range meets environmental requirements.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode chokes. These components are engineered for general-purpose EMI filtering in power electronics. The series offers various inductance and current ratings to accommodate different circuit requirements while maintaining consistent physical mounting styles.

Common Mode Chokes Replacement Considerations

Cross-reference with other SC series variants such as SC-10-300 or SC-10-100 if different inductance values are needed. Ensure substitute parts maintain the same through-hole configuration and voltage rating compatibility.
