SC-10-500

Common Mode Chokes Overview

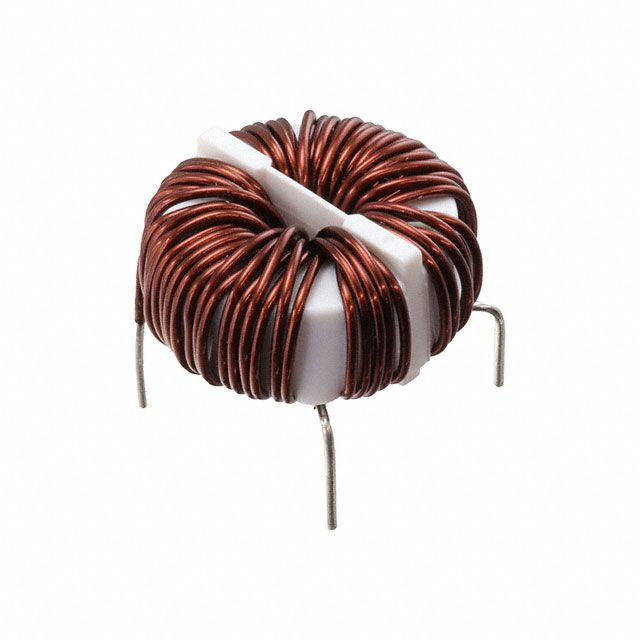

The KEMET SC-10-500 is a through-hole common mode choke designed for power line filtering. It features an inductance of 5 mH and supports a maximum DC current of 10 A. The component has a low DC resistance of 25 mΩ and is rated for 250 V. It operates within a temperature range of -25 °C to +105 °C.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for AC power lines
• Handles high continuous DC currents with minimal resistive loss
• Constructed for robust PCB mounting via through-hole termination

Common Mode Chokes Applications

• AC power input filtering for industrial equipment
• EMI suppression in switch-mode power supplies
• Noise reduction in consumer electronics power stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision to confirm mechanical dimensions and terminal compatibility before integration. Ensure the operating environment remains within the specified thermal limits to maintain performance stability. Cross-reference the manufacturer's part number against authorized distributor catalogs to confirm authenticity and traceability.

Common Mode Chokes Selection Notes

Select this component when high current handling capacity is required alongside significant common mode attenuation. The low DCR minimizes voltage drop and heat generation in high-power applications. Verify that the physical footprint fits the target PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET SC series of common mode chokes, which are engineered for general-purpose EMI filtering. The series offers various inductance values tailored for different power levels and frequency requirements in electronic circuits.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for equivalent inductance and current ratings. Verify pinout compatibility and mechanical dimensions before replacing.
