SC-10-D050

Common Mode Chokes Overview

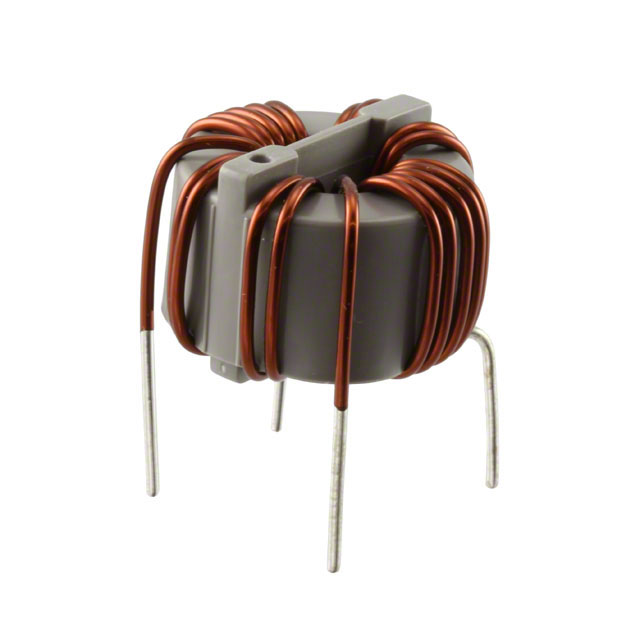

The KEMET SC-10-D050 is a through-hole common mode choke belonging to the SC-D high-frequency series. It features an inductance of 50 µH and supports a maximum current of 10 A with a DC resistance of 0.016 ohms. The component operates within a temperature range of -40°C to 105°C and is designed for AC line filtering applications.

Common Mode Chokes Feature Summary

• High-frequency performance optimized for AC line filtering
• Robust construction supporting up to 10 A maximum current
• Low DC resistance of 0.016 ohms for efficient operation

Common Mode Chokes Applications

• AC line filtering
• Common mode noise suppression
• Electromagnetic interference mitigation

Common Mode Chokes Procurement Notes

Verify the specific package type, as datasheets indicate both through-hole and surface mount variants within the SC-D series. Confirm the exact DC resistance value (16 mΩ vs 0.016 Ω) matches your circuit requirements. Ensure the operating temperature range of -40°C to 105°C suits your environment. Check RoHS compliance status directly from the manufacturer's documentation before procurement.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode chokes with a 50 µH inductance and 10 A current handling capability. The low DC resistance makes it suitable for power lines where efficiency is critical. Consider the physical dimensions of 34 x 23 mm for PCB layout planning. Verify that the test frequency of 100 kHz aligns with your noise spectrum analysis.

Common Mode Chokes Part Context

The SC-10-D050 is part of KEMET's SC Coils family, specifically the SC-D high-frequency type. This series provides passive components for electromagnetic compatibility solutions. KEMET, now part of YAGEO, offers extensive capacitor and filter technologies for industrial and consumer electronics.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Cross-reference inductance, current rating, and physical dimensions when evaluating alternatives.
