SC-10-E035J

Common Mode Chokes Overview

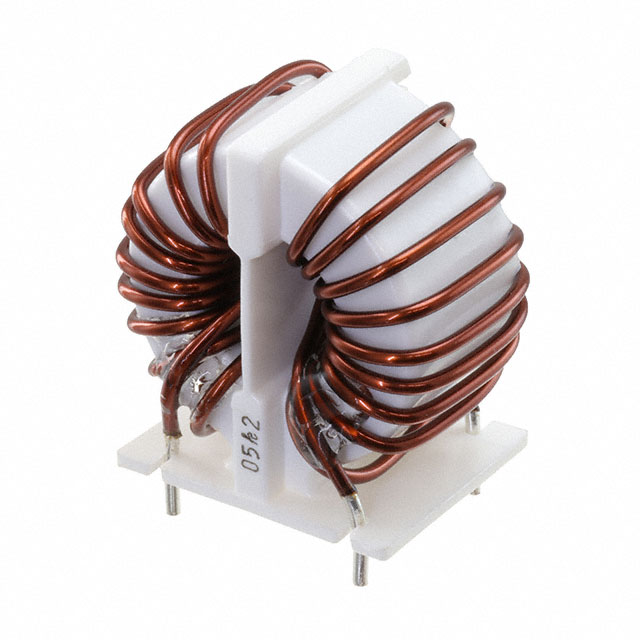

The KEMET SC-10-E035J is a through-hole common mode filter choke designed for noise suppression in electrical applications. It features an inductance of 350 µH and supports a maximum DC current of 10 A with a maximum DC resistance of 8 mΩ. Rated for 250 V AC/DC, the component operates within a temperature range of -25 °C to +120 °C. Constructed with ferrite core material, it utilizes horizontal PCB mounting and meets UL 94 V-0 flammability standards.

Common Mode Chokes Feature Summary

• Optimizes noise suppression using advanced ferrite material technology
• Designed for high-current applications with low DC resistance
• Horizontal through-hole mounting style for PCB integration

Common Mode Chokes Applications

• Electrical noise suppression circuits
• Common mode filtering in power supplies
• Industrial equipment signal integrity protection

Common Mode Chokes Procurement Notes

Verify the manufacturer part number SC-10-E035J against official KEMET documentation to ensure authenticity. Confirm that the specific order matches the required 350 µH inductance and 10 A current rating. Check for RoHS compliance status and UL certification details relevant to your region. Ensure the package type aligns with your assembly requirements before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 350 µH common mode choke is required for 10 A applications. The low 8 mΩ DCR minimizes power loss compared to higher resistance alternatives. Verify that the operating environment stays within the -25 °C to +120 °C range. Ensure the PCB layout accommodates the horizontal mounting footprint and terminal spacing.

Common Mode Chokes Part Context

This component belongs to the KEMET SC series of common mode chokes. The series is engineered for general-purpose noise filtering in electronic circuits. The SC-10-E035J variant specifically targets applications requiring moderate inductance with high current handling capabilities.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult KEMET technical support or authorized distributors for verified cross-references based on specific circuit requirements.
