SC-10-E200H

Common Mode Chokes Overview

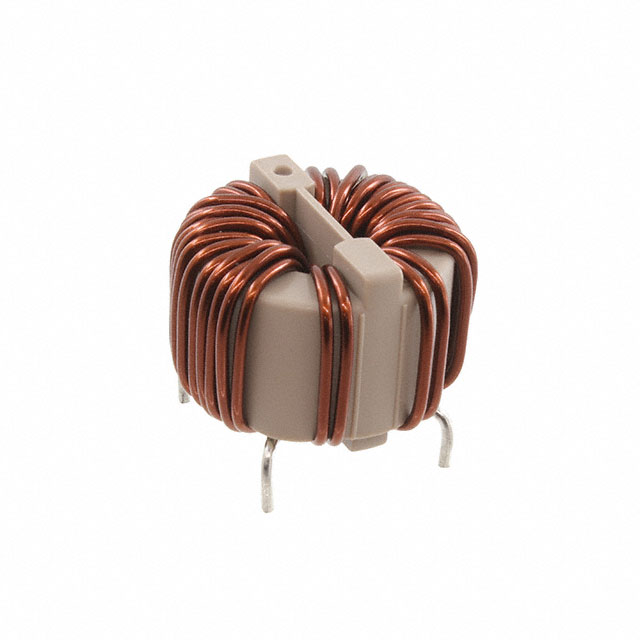

The KEMET SC-10-E200H is a through-hole common mode choke designed for power line filtering. It features an inductance of 2 mH at 10 kHz and supports a maximum DC current rating of 10 A. The component has a maximum DC resistance of 0.02 ohms and operates within a temperature range of -40°C to +120°C. Rated for 250 V AC, it utilizes ferrite core technology suitable for frequencies above 150 kHz.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for power lines
• Supports high current handling up to 10 A with low DC resistance
• Constructed with ferrite material optimized for high-frequency attenuation

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in industrial equipment
• Noise reduction in AC mains circuits

Common Mode Chokes Procurement Notes

Verify the specific package type and lead configuration against the official datasheet before integration. Confirm that the thermal ratings align with the intended operating environment. Ensure compatibility with existing PCB layouts or chassis mounting requirements. Cross-reference the manufacturer's part number to avoid substitution errors.

Common Mode Chokes Selection Notes

Select this component when high current capacity and robust EMI filtering are required for AC power applications. The 2 mH inductance offers significant impedance at higher frequencies. Consider the physical size and through-hole mounting constraints during design. Evaluate the thermal performance under continuous load conditions.

Common Mode Chokes Part Context

This component belongs to the KEMET SC series of common mode chokes. These filters are engineered for general-purpose EMI suppression in power electronics. The series provides various inductance values and current ratings to suit different circuit demands. The SC-10-E200H specifically targets applications requiring durable through-hole solutions.

Common Mode Chokes Replacement Considerations

Consult the official KEMET documentation for verified substitute part numbers. Ensure any replacement matches the electrical specifications and physical dimensions. Verify that alternative components meet the same safety and performance standards.
