SC-10-S30JH

Common Mode Chokes Overview

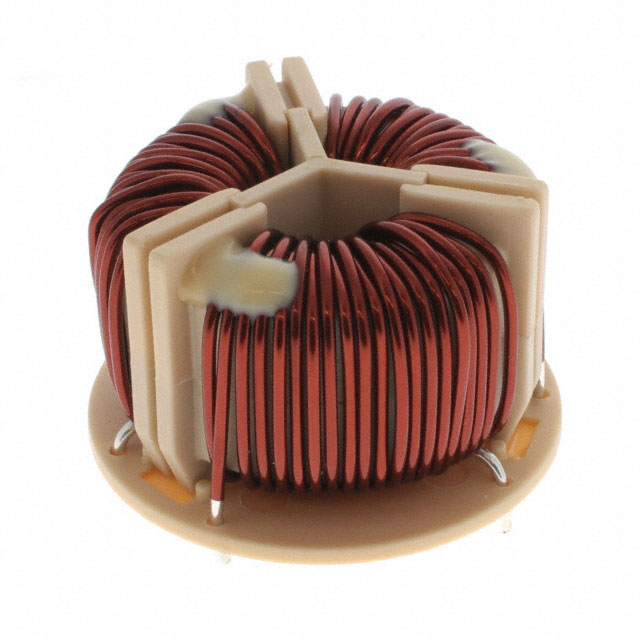

The SC-10-S30JH is a three-phase common mode EMI filter manufactured by KEMET. It features an inductance of 3mH at 10kHz and supports a rated current of 10A with a maximum DC resistance of 25mΩ. The component operates within a temperature range of -25°C to +120°C and holds UL approval.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for three-phase AC line applications
• Designed for high-current environments with a 10A rated capacity
• Constructed as a robust electromagnetic interference filter unit

Common Mode Chokes Applications

• Three-phase AC line filtering
• Industrial equipment EMI suppression
• Power distribution systems requiring common mode noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version, as documentation indicates the status may be transferred. Confirm that the required electrical parameters, including the 3mH inductance and 10A current rating, align with your circuit design requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode filtering is required for AC lines up to 250V. Ensure the application environment stays within the specified -25°C to +120°C operating temperature range and that the 25mΩ DC resistance meets system loss constraints.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of three-phase AC line filters. These components are engineered specifically for common mode noise attenuation in industrial power systems, offering a compact solution for electromagnetic interference mitigation in multi-phase configurations.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting and electrical specifications if considering alternative manufacturers.
