SC-12-15J

Common Mode Chokes Overview

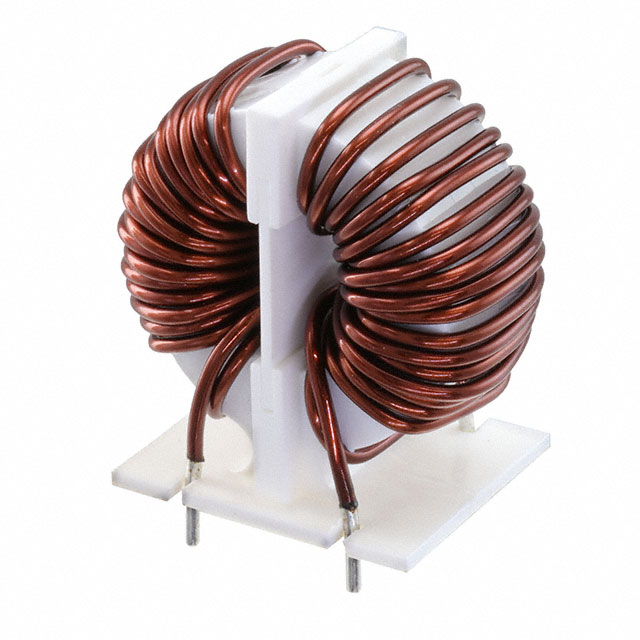

The KEMET SC-12-15J is a through-hole common mode choke belonging to the SC-JH series. It provides an inductance of 1.5 mH with a maximum DC current rating of 12 A and a maximum DC resistance of 18 mOhms. The component operates within a temperature range of -40°C to +105°C and features a single-channel configuration.

Common Mode Chokes Feature Summary

• Through-hole mounting for PCB integration
• High current handling capability up to 12 A
• Common mode noise filtering functionality

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in industrial equipment
• AC line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix (e.g., J, H) against official datasheets to confirm exact electrical tolerances and physical dimensions. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors before procurement.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are required for common mode noise suppression. Ensure the operating environment stays within the specified temperature range and that through-hole mounting is compatible with the target PCB design.

Common Mode Chokes Part Context

This part belongs to KEMET's SC-JH series of power common mode chokes designed for robust performance in demanding applications. The series offers various inductance and current ratings to suit different power line filtering requirements.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the SC-JH series or equivalent parts from other manufacturers offering similar 1.5 mH inductance and 12 A current ratings with compatible through-hole packages.
