SC-15-05J

Common Mode Chokes Overview

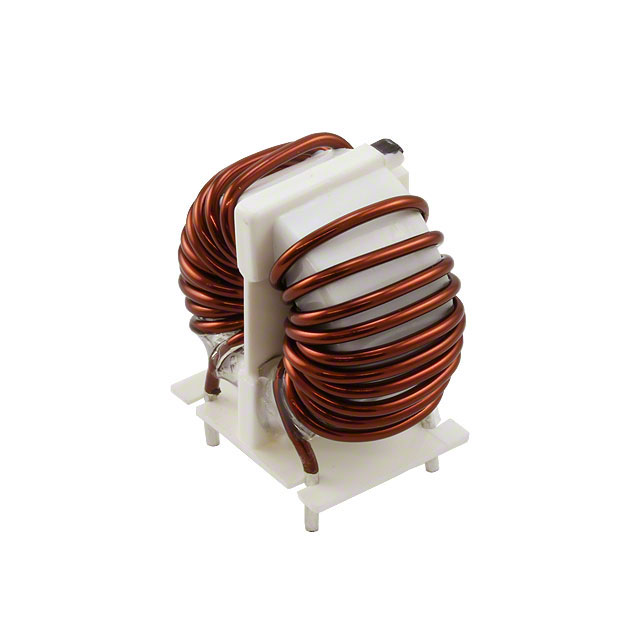

The KEMET SC-15-05J is a single-channel common mode choke designed for PCB mounting via through-hole termination. It features an inductance of 500 µH and supports a maximum DC current of 15 A with a maximum DC resistance of 8 mΩ. Rated for 250 V, the component operates within a temperature range of -25 °C to +120 °C. The ferrite core ensures effective noise suppression at a test frequency of 100 kHz.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering using a ferrite core structure
• Supports high current handling up to 15 A with low DC resistance
• Designed for reliable operation across a wide industrial temperature range

Common Mode Chokes Applications

• AC line filtering in power supply circuits
• EMI suppression in electronic equipment input stages
• Common mode noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with design requirements. Confirm that the through-hole package dimensions and pin spacing match the target PCB layout. Check for any updated compliance certifications or material declarations required for the intended market before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 500 µH inductance value is required for common mode noise attenuation in applications carrying up to 15 A. Ensure the operating environment stays within the specified -25 °C to +120 °C range. Verify that the 250 V rating meets the circuit voltage requirements and that the through-hole mounting style is suitable for the assembly process.

Common Mode Chokes Part Context

This component belongs to the SC-J series of common mode chokes manufactured by KEMET. The series is characterized by its use of ferrite cores for effective high-frequency noise suppression. These components are typically used in AC line filter applications where robust performance and high current capacity are necessary for maintaining signal integrity and reducing electromagnetic interference.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official KEMET resources or authorized distributors for verified cross-reference information before considering alternative components.
