SC-15-200

Common Mode Chokes Overview

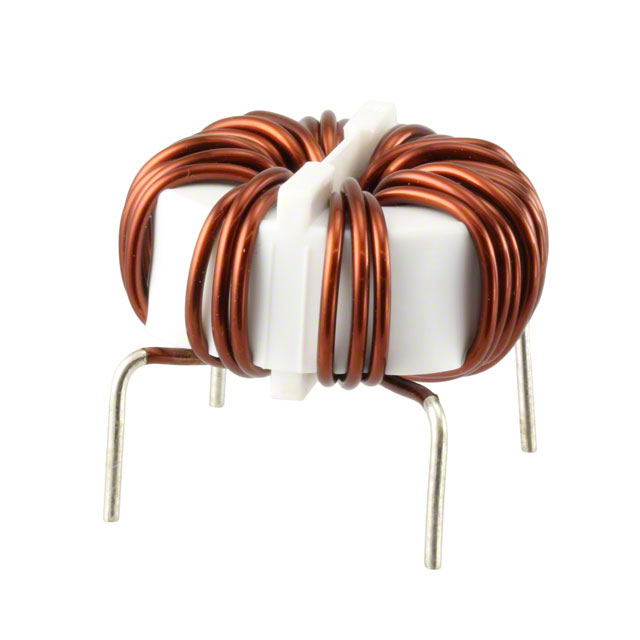

The KEMET SC-15-200 is a through-hole common mode choke designed for electromagnetic interference suppression. It features an inductance of 2 mH and supports a maximum DC current of 15 A. The component operates within a temperature range of -25°C to +75°C. Its physical dimensions are 50 mm in length, 28 mm in width, and 50 mm in height.

Common Mode Chokes Feature Summary

• Provides effective common mode noise filtering for dual-line applications
• Supports high current handling capabilities up to 15 amperes
• Constructed for reliable through-hole printed circuit board mounting

Common Mode Chokes Applications

• Electromagnetic interference suppression in power supply circuits
• Noise filtering for industrial equipment power inputs
• Common mode chokes in AC line filtering applications

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SC-15-200 to confirm exact electrical tolerances and mechanical drawings. Ensure that the operating environment remains within the specified -25°C to +75°C range to maintain performance integrity. Cross-reference the 15 A current rating with actual circuit loads to prevent saturation or thermal issues during operation.

Common Mode Chokes Selection Notes

Select this component when a 2 mH inductance value is required for common mode noise reduction in high-current scenarios. The 15 A rating makes it suitable for robust power line applications. Consider the through-hole package style if surface mount options are not feasible for the target PCB design. Verify that the physical footprint of 50x28x50 mm fits the available board space.

Common Mode Chokes Part Context

This part belongs to the KEMET SC series of common mode filters. These components are engineered for general-purpose EMI suppression in electronic systems requiring durable through-hole solutions. The series offers various inductance values to suit different filtering requirements across multiple industries.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the SC series, such as the SC-15-07J or SC-15-02J, noting differences in inductance and resistance values. Ensure any replacement maintains the 15 A current rating and compatible physical dimensions for the existing mounting configuration.
