SC-15-E110H

Overview

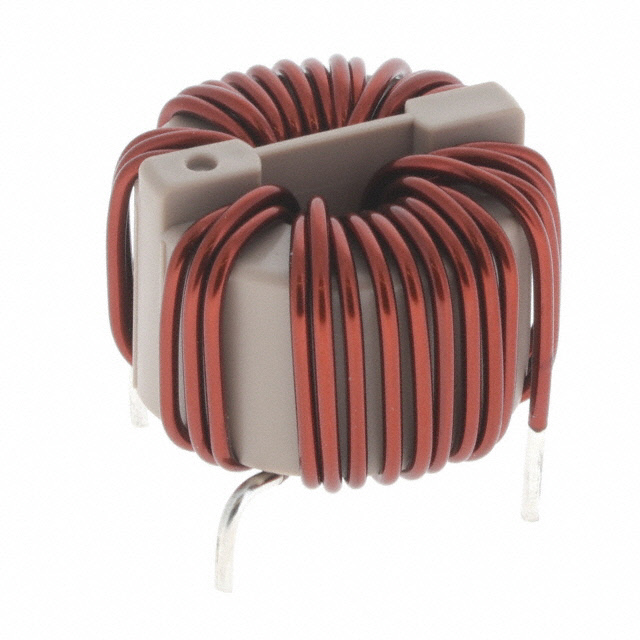

The KEMET SC-15-E110H is a two-line common mode choke designed for power line filtering applications. It features an inductance of 1.1 mH measured at 10 kHz and supports a maximum current rating of 15 A. The component has a DC resistance (DCR) of 16.5 mOhm and operates within a temperature range of -40°C to 120°C. It utilizes proprietary ferrite material suitable for frequencies greater than or equal to 150 kHz, with voltage ratings of 250 V AC and 250 V DC.

Feature Summary

• Utilizes proprietary 5H, 7H, and 10H ferrite materials optimized for high-frequency noise suppression
• Designed for effective common mode noise attenuation in the 150 kHz frequency range and above
• Constructed for through-hole mounting with a horizontal package configuration

Applications

• Power line EMI filtering in industrial equipment
• Noise suppression in switch-mode power supplies
• Electromagnetic interference mitigation in consumer electronics

Procurement Notes

Verify the specific datasheet version for the SC-15-E110H to confirm exact electrical tolerances and mechanical dimensions prior to integration. Ensure that the operating environment remains within the specified -40°C to 120°C thermal limits to maintain performance integrity. Cross-reference the 16.5 mOhm DCR value against circuit requirements to validate thermal management needs under full 15 A load conditions.

Selection Notes

Select this component when high-current handling capability of 15 A is required alongside significant inductance for low-frequency common mode noise reduction. The 1.1 mH inductance value distinguishes it from lower-inductance variants in the SC series. Consider the through-hole form factor if PCB space allows for larger components compared to surface-mount alternatives.

Part Context

This part belongs to the KEMET SC Series of common mode chokes, which are engineered for robust power line filtering. The series offers various inductance values and current ratings, with the SC-15-E110H representing a high-inductance option. It shares the same physical footprint characteristics as other SC-15 models but differs significantly in magnetic core properties and inductance specifications.

Replacement Considerations

The UALSC15E110H0000 is listed as an alias for this component. Verify compatibility with other SC-15 series parts only if inductance and current ratings match exactly.
