SC-15-E350

Overview

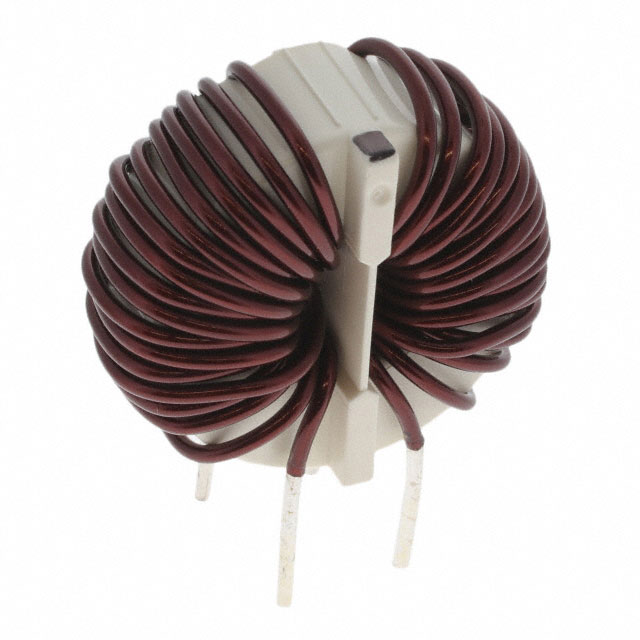

The KEMET SC-15-E350 is a common mode choke designed for AC line filtering applications. It features an inductance of 3.5 mH and supports a maximum DC current of 15 A. The component has a maximum DC resistance of 20 mOhms and operates within a temperature range of -25 °C to +120 °C. Rated for 250 V, it utilizes nickel-zinc ferrite core material and is available in a through-hole PCB mount package.

Feature Summary

• Provides common mode noise suppression for AC line circuits
• Utilizes nickel-zinc ferrite core material for high-frequency performance
• Supports high current handling up to 15 A with low DC resistance

Applications

• AC line input filtering
• EMI suppression in power supplies
• Noise reduction in industrial equipment

Procurement Notes

Verify the specific part number suffix against official KEMET documentation to ensure correct electrical ratings and packaging configuration. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to ordering.

Selection Notes

Select this component when designing AC line filters requiring 3.5 mH inductance at 15 A. Ensure the application voltage does not exceed 250 V and the operating environment stays within the specified -25 °C to +120 °C range. Verify PCB footprint compatibility for through-hole mounting.

Part Context

This component belongs to the SC series of common mode chokes from KEMET. It is categorized under passive components, specifically inductors and chokes. The series is designed for general-purpose EMI filtering in electronic equipment requiring robust AC line protection.

Replacement Considerations

Check for direct substitutes within the SC series or equivalent models from other manufacturers offering identical 3.5 mH inductance and 15 A current rating. Ensure pinout and physical dimensions match for drop-in replacement.
