SC-15-E350H

Overview

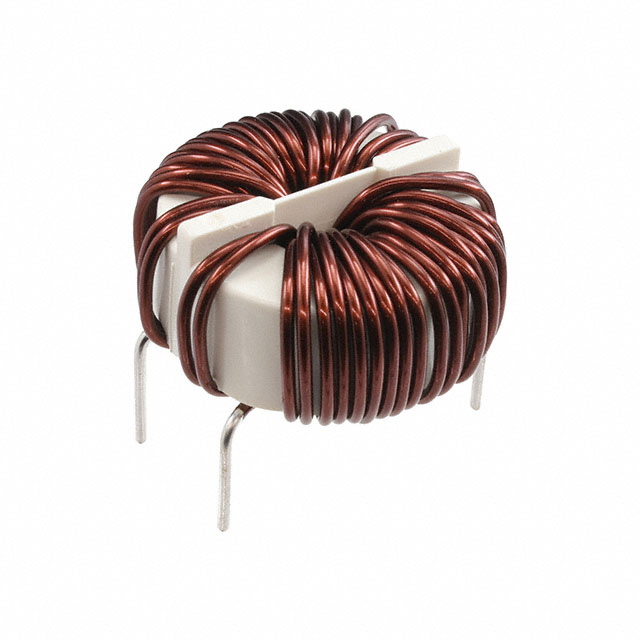

The KEMET SC-15-E350H is a single-channel common mode filter designed for PCB mounting via through-hole termination. It features an inductance of 3.5 mH and supports a maximum DC current of 15 A with a maximum DC resistance of 20 mOhms. Rated for 250 V, the component operates within a temperature range of -25 °C to +120 °C. Its physical dimensions are 50 mm in diameter, 15 mm in length, and 28 mm in height.

Feature Summary

• Provides common mode noise suppression for AC line applications
• Supports high continuous current handling capability
• Utilizes nickel-zinc ferrite core material for stable performance

Applications

• AC line filtering in industrial power supplies
• EMI suppression in motor drive circuits
• Noise reduction in general-purpose electronic equipment

Procurement Notes

Verify the specific suffix 'E350H' against the official KEMET datasheet to confirm exact electrical tolerances and compliance status. Ensure the procurement documentation matches the required lead time and packaging format specified by the manufacturer for this particular part number variant.

Selection Notes

Select this component when a high-current common mode choke is required for AC line filtering. The 15 A rating and low DCR make it suitable for applications demanding minimal insertion loss. Verify that the 50 mm diameter footprint fits the available PCB space and that the through-hole mounting style aligns with the assembly process.

Part Context

This component belongs to the SC series of common mode chokes from KEMET. These components are engineered for robust EMI suppression in power electronics. The SC series typically utilizes ferrite cores to provide effective noise attenuation across a broad frequency spectrum while maintaining structural integrity under high thermal loads.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
