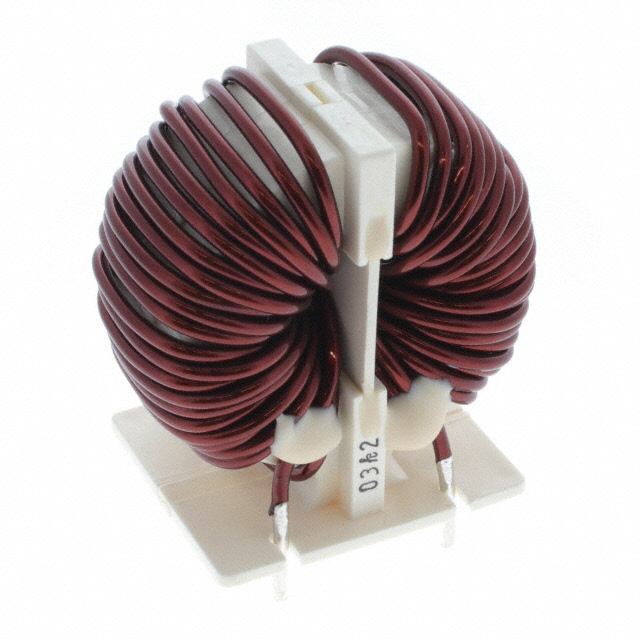

SC-15-E37J

$6.49

Description：CMC 3.7MH 15A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:299c9408db49 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3.7MH 15A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：15A
DC Resistance (DCR) (Max)：16mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max)：1.732" (44.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：3.7 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

SC-15-E37J

Overview

The KEMET SC-15-E37J is a through-hole common mode choke from the SC-J series, designed for AC line filtering. It features an inductance of 3.7 mH and supports a maximum DC current of 15 A with a DC resistance of 16 mOhms. The component operates within a temperature range of -25°C to +120°C and has a diameter of 44 mm.

Feature Summary

Provides common mode noise suppression for AC power lines
Supports high current handling up to 15 A
Designed for through-hole PCB mounting

Applications

AC line input filtering
Power supply EMI suppression
Industrial equipment noise reduction

Procurement Notes

Verify the specific part number SC-15-E37J against official KEMET documentation to confirm electrical parameters such as 3.7 mH inductance and 15 A current rating. Ensure compatibility with through-hole mounting requirements and operating temperature ranges before procurement.

Selection Notes

Select this component when common mode filtering is required for AC lines with currents up to 15 A. Consider the 16 mOhm DC resistance and 3.7 mH inductance values for circuit design. Verify thermal performance within the -25°C to +120°C range for the intended application environment.

Part Context

The SC-15-E37J belongs to the KEMET SC-J series of common mode chokes. This series is engineered for robust performance in power line applications, offering reliable noise attenuation through through-hole construction suitable for industrial and commercial power systems.

Replacement Considerations

Check for direct substitutes within the SC-J series or equivalent common mode chokes with matching 3.7 mH inductance and 15 A current ratings. Verify pinout and dimensional compatibility for through-hole installation.
