SC-18-100

Common Mode Chokes Overview

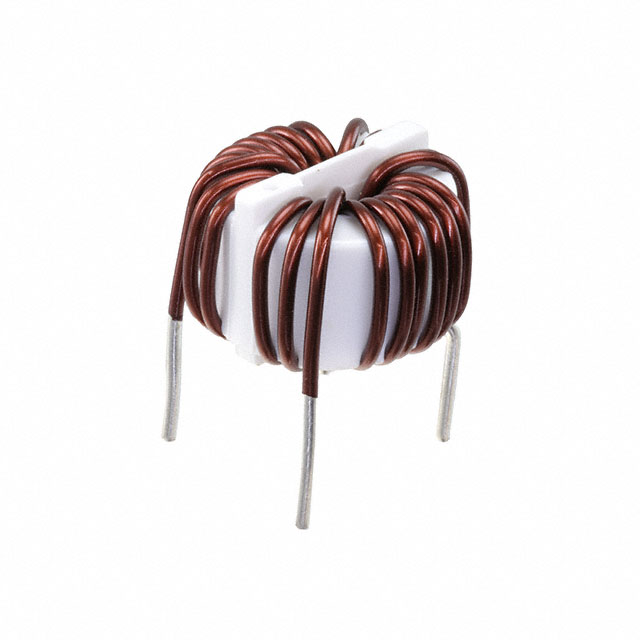

The KEMET SC-18-100 is a through-hole common mode choke belonging to the SC series. It features a toroidal design utilizing proprietary ferrite cores for effective noise suppression in AC line applications. The component provides an inductance of 700 uH at standard test frequencies and supports a current rating of 18A. With a low DC resistance of 0.02 Ohms, it minimizes power loss while handling voltages up to 250V. This filter is engineered for robust performance in demanding power supply environments.

Common Mode Chokes Feature Summary

• Toroidal construction with proprietary ferrite core technology
• Through-hole mounting style for secure PCB integration
• High current handling capability for power line filtering

Common Mode Chokes Applications

• AC line input filtering
• Power supply EMI suppression
• Common mode noise reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to ensure compatibility with your circuit requirements. Confirm that the through-hole package dimensions match your PCB footprint design. Check for any recent updates to the datasheet regarding electrical characteristics or compliance standards before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are required for common mode noise attenuation. The toroidal geometry offers compact sizing relative to performance. Ensure the operating voltage does not exceed the rated limit and that the thermal environment supports continuous 18A operation without derating issues.

Common Mode Chokes Part Context

The SC series from KEMET represents a range of common mode chokes designed for various power filtering needs. These components utilize advanced magnetic materials to achieve high permeability and inductance values. The SC-18-100 specifically targets applications requiring significant current handling alongside effective electromagnetic interference mitigation in single-phase AC systems.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions when evaluating potential substitutes to maintain circuit integrity and performance specifications.
