SC-18-10J

$3.57

Description：CMC 700UH 20A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray

SKU:abd281d519f6 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 700UH 20A 2LN TH
Series：SC-J
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.378" L x 0.945" W (35.00mm x 24.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：700 µH @ 100 kHz
Impedance @ Frequency：-

Download product information

SC-18-10J

Overview

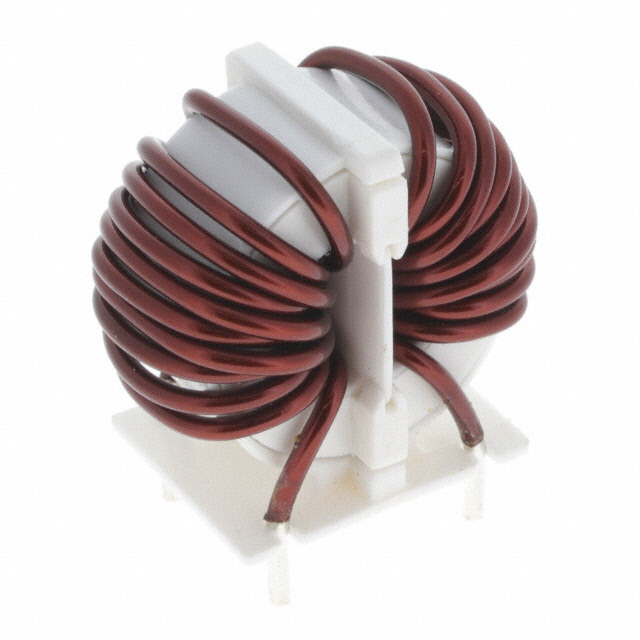

The KEMET SC-18-10J is a two-line common mode choke designed for through-hole mounting. It features an inductance of 700 µH measured at 100 kHz and supports a current rating of 20 A with a DC resistance of 20 mΩ. The component operates within a temperature range of -25°C to +120°C and is rated for 250 VAC.

Feature Summary

Provides effective noise suppression for two-line applications
Supports high current handling capabilities
Designed for robust through-hole integration

Applications

Power supply input filtering
EMI suppression in industrial equipment
Noise reduction in AC power lines

Procurement Notes

Verify the specific package type and lead configuration against the official datasheet before ordering. Confirm that the thermal ratings align with the intended operating environment. Ensure compatibility with automated or manual insertion processes based on the mechanical dimensions provided by the manufacturer.

Selection Notes

Select this component when a 700 µH inductance value is required for common mode noise rejection. Consider the 20 A current rating and low DC resistance for efficiency. Evaluate the through-hole form factor against available PCB space and assembly methods.

Part Context

This part belongs to KEMET's SC series of common mode chokes, which are engineered for general-purpose EMI filtering. The series offers various inductance and current combinations to suit different power line requirements while maintaining compact physical profiles.

Replacement Considerations

Consult the official KEMET documentation for direct substitutes. Verify that any alternative component matches the 700 µH inductance, 20 A current rating, and 20 mΩ DC resistance specifications.
