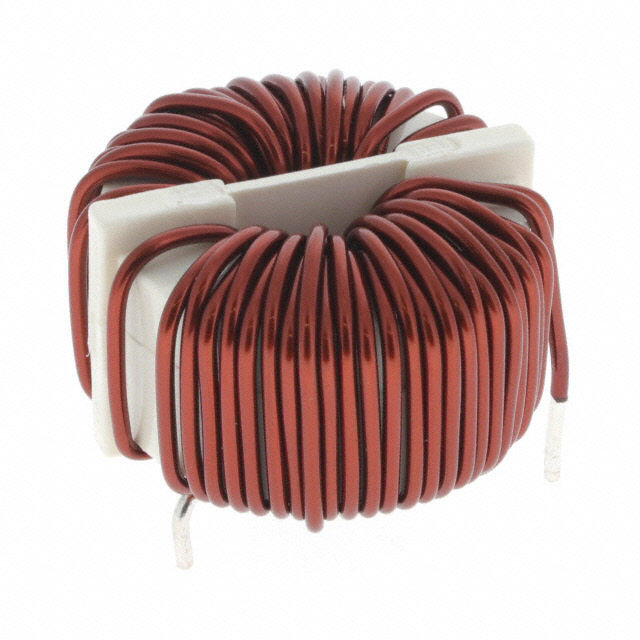

SC-18-290

$6.97

Description：CMC 2.9MH 18A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk

SKU:b0dda06727de Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.9MH 18A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：18A
DC Resistance (DCR) (Max)：25mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.575" Dia (40.00mm)
Height (Max)：1.102" (28.00mm)
Package / Case：Horizontal, No Base, 4 PC Pin
Inductance @ Frequency：2.9 mH @ 100 kHz
Impedance @ Frequency：-

Download product information

SC-18-290

Overview

The KEMET SC-18-290 is a common mode filter featuring an inductance of 2.9 mH and a DC current rating of 18 A. It has a maximum DC resistance of 0.025 ohms and operates within a temperature range of -40°C to +120°C.

Feature Summary

Provides common mode noise suppression for power lines
Utilizes nanocrystalline metal core technology for high permeability
Designed for through-hole mounting applications

Applications

Power line filtering
Industrial equipment EMI suppression
Power supply input stages

Procurement Notes

Verify the component designation against official KEMET documentation to confirm specifications. Ensure the required operating temperature range and current ratings align with the system design requirements before procurement.

Selection Notes

Select this component for applications requiring high inductance and significant current handling capabilities. The nanocrystalline core offers superior performance compared to standard ferrite cores in specific frequency ranges.

Part Context

This part belongs to the SCF-X coil series from KEMET, which features ultra-high inductance and permeability. The series utilizes toroidal coils with nanocrystalline metal cores for enhanced filtering performance.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic cross-references may not match the specific nanocrystalline core characteristics or current ratings.
