SC-20-100

$11.56

Description：CMC 1MH 20A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk

SKU:cf5dc1a9396d Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1MH 20A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：8mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.362" Dia (60.00mm)
Height (Max)：1.181" (30.00mm)
Package / Case：Horizontal, No Base, 4 PC Pin
Inductance @ Frequency：1 mH @ 100 kHz
Qualification：-

Download product information

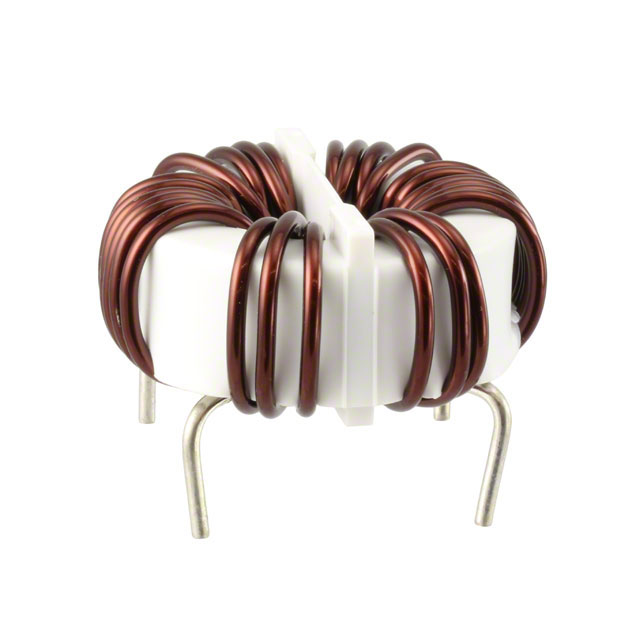

SC-20-100

Overview

The KEMET SC-20-100 is a two-line common mode choke designed for through-hole mounting. It features an inductance of 1 mH measured at 100 kHz and supports a current rating of 20 A. The component has a maximum DC resistance (DCR) of 8 milliohms and is rated for 250 VAC. It operates within a temperature range of -25°C to +120°C.

Feature Summary

Provides common mode noise suppression for two-line circuits
Supports high current handling up to 20 A
Designed for through-hole PCB integration

Applications

Power supply input filtering
Industrial equipment EMI suppression
Automotive electronics noise reduction

Procurement Notes

Verify the manufacturer part number SC-20-100 against official KEMET documentation to ensure authenticity. Confirm that the required specifications, including 1 mH inductance, 20 A current rating, and 8 mOhm DCR, match your design requirements before procurement.

Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation with high current capacity. Ensure the operating environment stays within the specified -25°C to +120°C temperature range and that the 250 VAC voltage rating is sufficient for the application.

Part Context

This component belongs to the KEMET SC series of common mode chokes. These are power inductors intended for electromagnetic interference suppression in electronic systems. The series offers various current and inductance options for different power line applications.

Replacement Considerations

SC-10-100 is a related model in the same series but is rated for 10 A instead of 20 A. Verify if the lower current rating meets the specific circuit requirements before considering it as a substitute.
