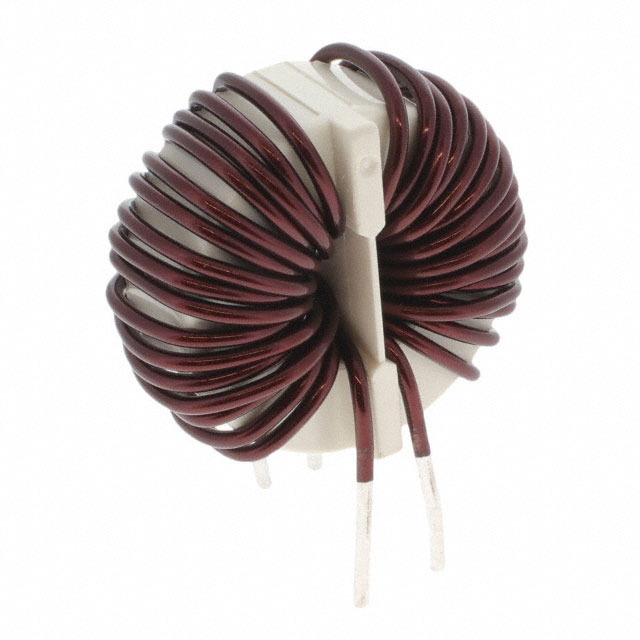

SC-20-201

$8.56

Description：CMC 2MH 20A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk

SKU:505a98176fd4 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2MH 20A 2LN TH
Series：SC
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：10mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.929" Dia (49.00mm)
Height (Max)：1.929" (49.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：2 mH @ 10 kHz
Qualification：-

Download product information

SC-20-201

Overview

The KEMET SC-20-201 is a common mode choke coil designed for AC line filter applications. It features an inductance of 2000 uH and is constructed as a common mode component to suppress electromagnetic interference. The device is manufactured by KEMET Corporation and falls under the category of passive components, specifically chokes and coils.

Feature Summary

Designed for common mode noise suppression in AC line filter circuits
Provides high inductance for effective EMI filtering

Applications

AC line filters
Common mode noise suppression

Procurement Notes

Verify the manufacturer datasheet for specific mechanical dimensions, current ratings, and insulation characteristics not detailed in general summaries. Confirm compliance with relevant safety standards and environmental regulations required for your specific deployment before procurement.

Selection Notes

Select this component when a 2000 uH common mode inductance is required for AC line filtering. Ensure the physical package and mounting style match the PCB design constraints. Verify that the operating temperature range and current handling capabilities meet the system requirements.

Part Context

This component belongs to the SC series of common mode chokes from KEMET. It is categorized under passive components and is used primarily for signal integrity and power line filtering in electronic systems requiring common mode noise reduction.

Replacement Considerations

Consult official KEMET documentation or authorized distributors for verified substitute part numbers within the SC series or equivalent common mode chokes from other manufacturers that meet the same electrical and mechanical specifications.
