SC-26-S010JH

Overview

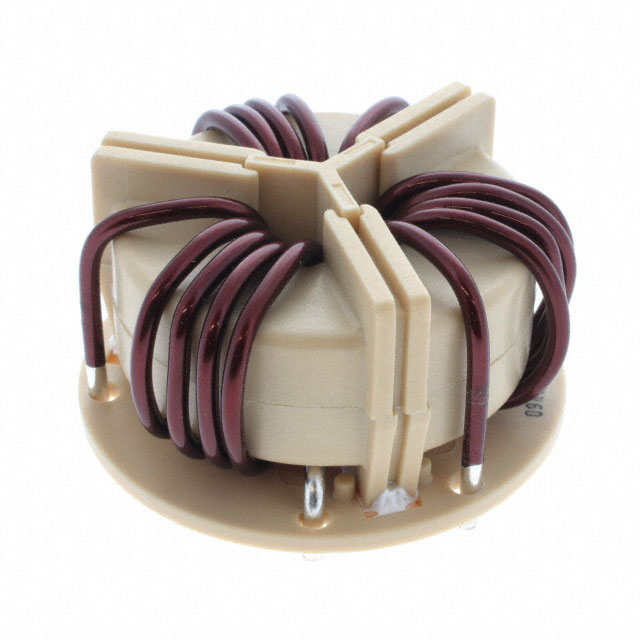

The KEMET SC-26-S010JH is a three-phase common mode choke designed for AC line filtering applications. It features a rated voltage of 500V and supports a maximum DC current of 26A. The inductance value is 101.5µH with a maximum DC resistance (DCR) of 15mΩ. This component utilizes a heat-resistant construction suitable for through-hole horizontal mounting. It operates within a temperature range of -40°C to +130°C.

Feature Summary

• Provides effective common mode noise suppression for three-phase AC power lines
• Constructed with heat-resistant materials for reliable operation in elevated thermal environments
• Designed for robust performance under high current loads up to 26A

Applications

• Three-phase AC line filtering
• Common mode noise suppression in industrial power systems
• EMI mitigation in motor drive circuits

Procurement Notes

Verify the specific suffix JH against the manufacturer's latest datasheet to confirm pinout, tolerance, and packaging details. Ensure the selected component matches the required 500V rating and 26A current capacity for your specific circuit design. Cross-reference the part number with official KEMET documentation to avoid counterfeit or obsolete variants.

Selection Notes

Select this component when designing three-phase power filters requiring high current handling and thermal stability. The 101.5µH inductance provides specific attenuation characteristics for common mode interference. Consider the physical dimensions and through-hole mounting style during PCB layout planning to ensure adequate clearance and mechanical stability.

Part Context

This component belongs to the KEMET SC series of three-phase common mode chokes. These components are engineered for demanding power electronics applications where size, efficiency, and reliability are critical. The series offers various inductance and current ratings to suit different power levels and filtering requirements.

Replacement Considerations

Consult KEMET's official substitution guide for verified alternatives. Ensure any replacement maintains the same 500V rating, 26A current capacity, and 101.5µH inductance. Verify that the substitute component fits the existing footprint and meets the same thermal and regulatory standards.
