SC-30-D010

Overview

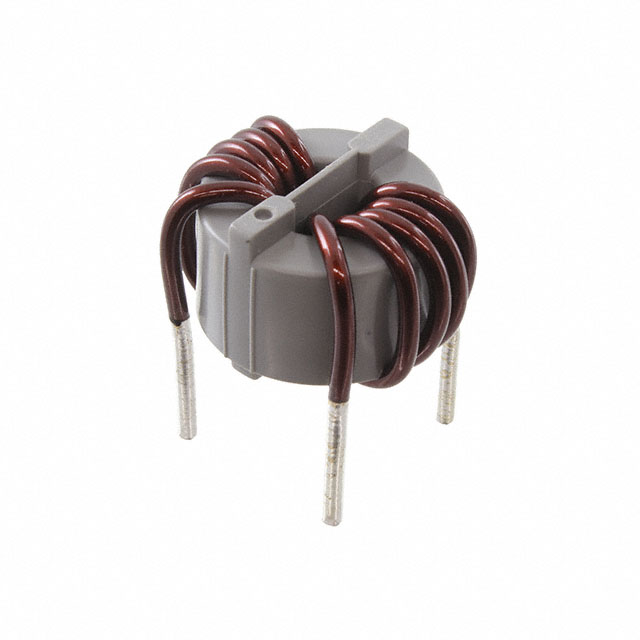

The KEMET SC-30-D010 is a through-hole common mode choke designed for power line filtering applications. It features an inductance of 10 µH and supports a current rating of 30 A with a maximum DC resistance of 18 mΩ. The component operates within a temperature range of -25°C to +105°C and exhibits high-frequency performance characteristics suitable for noise suppression.

Feature Summary

• Provides effective common mode noise suppression for power lines
• Constructed with toroidal coils utilizing nanocrystalline metal cores for high permeability
• Encapsulated in UL 94 V–2 flame retardant rated material

Applications

• Power line filtering
• High frequency noise suppression
• EMI reduction in industrial equipment

Procurement Notes

Verify the specific manufacturer designation, as YAGEO Group documentation lists this part number under aliases such as UALSC30D010000. Confirm that the required specifications align with the 10 µH inductance and 30 A current rating before procurement. Ensure the thermal and physical constraints match the system design requirements.

Selection Notes

Select this component when high current handling capability up to 30 A is required alongside significant inductance for power line applications. The wide operating temperature range and robust construction make it suitable for demanding environments where reliable EMI suppression is critical.

Part Context

This component belongs to the KEMET SC-D series of common mode chokes. The series is characterized by ultra-high inductance and permeability achieved through the use of nanocrystalline metal cores in a toroidal configuration, offering a compact solution for power filtering needs.

Replacement Considerations

Check for cross-references or aliases such as UALSC30D010000. Verify compatibility with similar SC-series variants like SC-20-D010, ensuring inductance and current ratings meet the circuit requirements.
