SC-35-D010JH

Overview

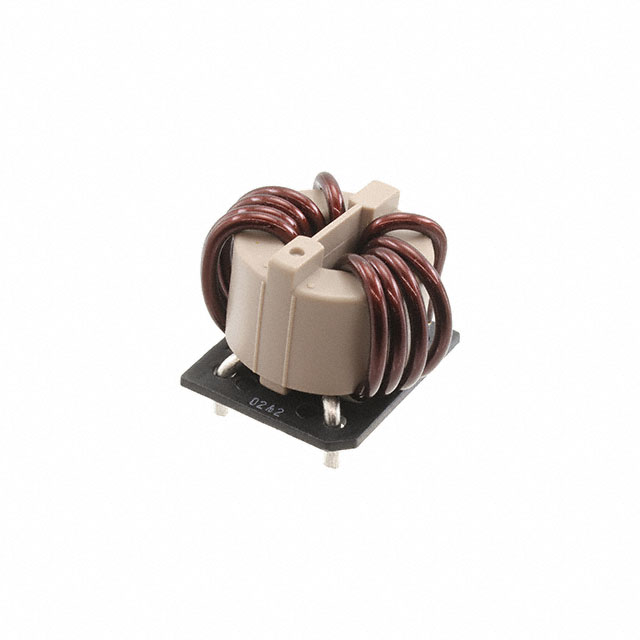

The KEMET SC-35-D010JH is a through-hole common mode choke from the SC series, designed for power line filtering. It features an inductance of 10 µH measured at 100 kHz and supports a maximum DC current of 35 A. The component has a low maximum DC resistance of 1.8 mΩ and operates within a temperature range of -25 °C to 120 °C. Rated for 250 VAC, it utilizes a nickel-zinc ferrite core and offers radial lead termination for standard PCB mounting.

Feature Summary

• High current handling capability suitable for demanding power applications
• Low impedance design minimizes voltage drop across the filter
• Robust thermal performance ensures stability under continuous load

Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Motor drive circuit protection

Procurement Notes

Verify the specific suffix JH against official KEMET documentation to confirm terminal plating and packaging details. Ensure the 35 A rating aligns with your system's thermal management capabilities. Cross-reference the 10 µH inductance tolerance with your circuit requirements. Confirm compliance with relevant safety standards before integration into final assemblies.

Selection Notes

Select this component when high current capacity is required alongside effective common mode noise reduction. The low DCR helps maintain efficiency in power stages. Consider the radial package constraints for board layout. Evaluate thermal dissipation needs given the 35 A operating limit and ambient temperature conditions.

Part Context

This part belongs to the KEMET SC series of common mode chokes, which are engineered for robust performance in power electronics. The series typically employs nickel-zinc ferrite materials to provide effective high-frequency attenuation. These components are widely used in industrial and commercial power systems where reliability and high current handling are critical.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Ensure any replacement matches the 10 µH inductance, 35 A current rating, and 1.8 mΩ DCR specifications. Verify physical dimensions and pin compatibility for direct board replacement.
