SC110M

Overview

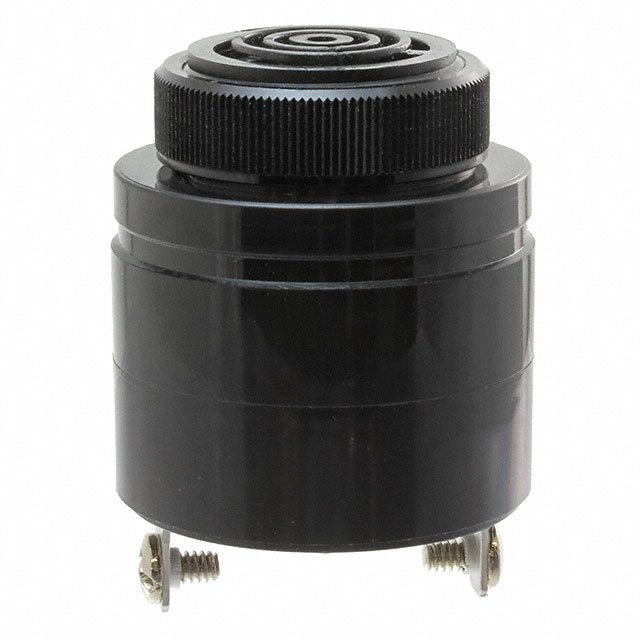

The SC110M is a piezoelectric buzzer from the SC series by Mallory Sonalert Products Inc., designed for industrial audio indication. It operates on a voltage range of 30 to 120V AC or DC with a current draw of 6 to 20mA. The device emits a continuous tone at a frequency of 2.9 kHz, achieving a sound pressure level of 97 dBA. It features panel mount installation via screw terminals and includes an integrated LED indicator. The unit measures 43 mm in diameter and 35.54 mm in height.

Feature Summary

• Integrates a visual LED indicator alongside the audible alarm function
• Supports both AC and DC input voltages within the specified range
• Features internal drive circuitry requiring no external components
• Constructed with a durable housing suitable for industrial environments

Applications

• Industrial machinery status monitoring
• Control panel alarm systems
• Safety equipment auditory indicators
• HVAC system fault signaling

Procurement Notes

Verify the specific acoustic output and mounting requirements against the official datasheet before procurement. Confirm that the operating environment temperature falls within the rated limits. Ensure the power supply matches the 30-120V AC/DC specification. Check for any recent product change notices regarding terminal types or certification updates.

Selection Notes

Select this model when a combined audio and visual alert is required for high-voltage industrial applications. The 97 dBA output ensures audibility in noisy settings. The panel mount design simplifies integration into existing enclosures. Consider the physical dimensions to ensure adequate space within the control panel layout.

Part Context

This component belongs to the SC series of industrial buzzers, which are characterized by their robust construction and compatibility with standard panel cutouts. The series offers various frequencies and tones to suit different alarm priorities. The SC110M specifically provides a continuous tone option with integrated lighting for enhanced visibility.

FAQ

What is the operating voltage range for the SC110M?

The SC110M operates on a voltage range of 30 to 120V AC or DC.

Does the SC110M include a visual indicator?

Yes, the SC110M includes an integrated LED indicator alongside the piezoelectric buzzer.

What type of mounting does the SC110M use?

The SC110M uses a panel mount style with screw terminals for electrical connection.
