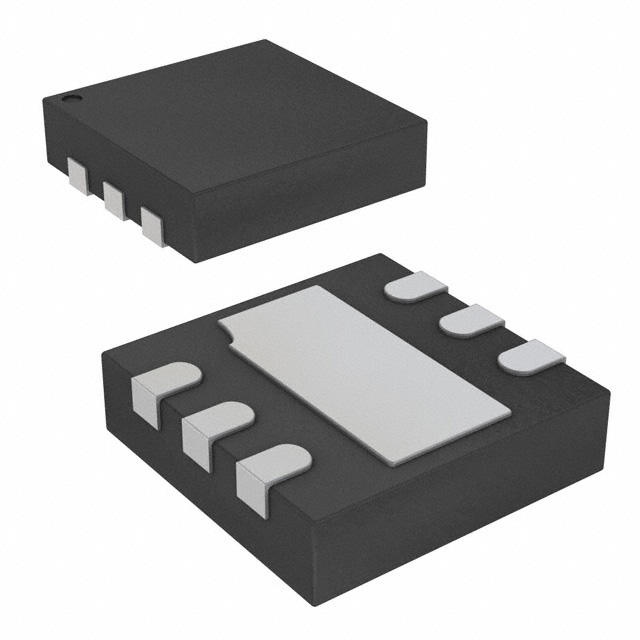

SC120ULTRT

Description：IC REG BOOST ADJ/1.8V 80MA 6MLPD
Series：-
Mfr：Semtech Corporation
Package：Tape & Reel (TR)

SKU:1aee1676e25c Category: Voltage Regulators - DC DC Switching Regulators Brand: Semtech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC120ULTRT is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Semtech Corporation. Its product description is IC REG BOOST ADJ/1.8V 80MA 6MLPD. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for SC120ULTRT

Description：IC REG BOOST ADJ/1.8V 80MA 6MLPD
Series：-
Mfr：Semtech Corporation
Package：Tape & Reel (TR)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Adjustable (Fixed)
Number of Outputs：1
Voltage - Input (Min)：0.7V
Voltage - Input (Max)：4.5V
Voltage - Output (Min/Fixed)：1.8V (3.3V)
Voltage - Output (Max)：5V
Current - Output：80mA
Frequency - Switching：1.2MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：6-UFDFN Exposed Pad
Supplier Device Package：6-MLPD-UT (1.5x2)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for SC120ULTRT

SC120ULTRT

Voltage Regulators - DC DC Switching Regulators Overview

The SC120ULTRT is a low voltage boost converter IC manufactured by Semtech Corporation. It operates with an input voltage range of 4.5V to 27V and provides a fixed output voltage of 5V. The device features a switching frequency of 1.2MHz and includes synchronous rectification for improved efficiency. It is housed in a 6-UFDFN Exposed Pad package and supports surface mount installation. The component is designed for positive adjustable or fixed output voltage regulation within power management applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Synchronous rectification architecture
Fixed 5V output capability
High-frequency switching operation

Voltage Regulators - DC DC Switching Regulators Applications

Positive fixed output voltage regulation
Low voltage boost conversion systems
Power management integrated circuits

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify current manufacturing status as the SC120ULTRT is listed as obsolete or last time buy by Semtech. Confirm availability through authorized distributors or approved substitute sources. Ensure compliance with RoHS and WEEE directives if sourcing remaining stock. Validate package integrity and lead-free specifications upon receipt.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for applications requiring a compact, low-voltage boost solution with synchronous rectification. Consider the fixed 5V output constraint when designing power rails. Evaluate thermal performance within the specified operating temperature range of -40°C to 85°C. Verify compatibility with the 6-UFDFN Exposed Pad footprint during PCB layout.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the Semtech family of switching voltage regulators. It serves as a dedicated step-up converter for portable and battery-powered devices. The device integrates control logic and power switches into a small form factor, distinguishing it from discrete boost solutions.
