SC2036ACP

Overview

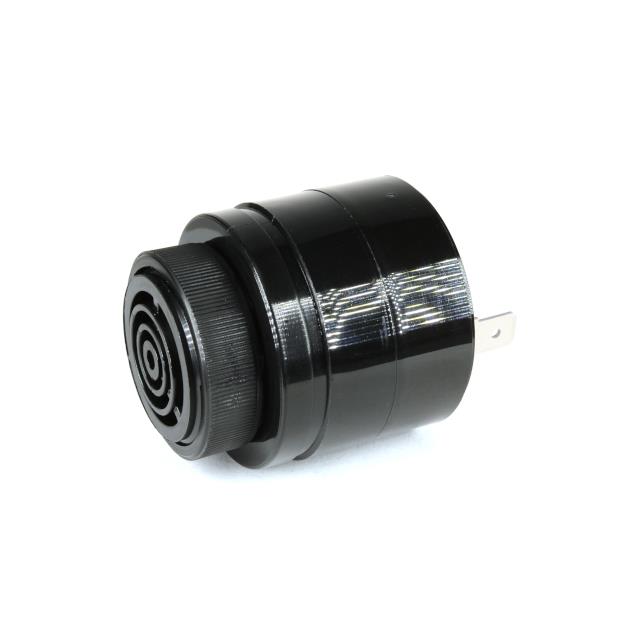

The SC2036ACP is a piezoelectric buzzer from the SC series by Mallory Sonalert Products Inc., designed for audible indication and chime alerts. It features an internally driven circuit requiring DC input within a voltage range of 20 to 36V. The device operates at a frequency of 1kHz with a sound pressure level of 68dB measured at 20V and 61cm. Power consumption ranges from 12 to 25mA. It utilizes a harmonic working mode and employs thread terminals or quick connect tabs measuring 0.250 inches (6.35mm) for connection. The unit is constructed for panel mounting, featuring a circular design with a diameter of 42.85mm and a maximum installation height of 49.43mm.

Feature Summary

• Internally driven piezoelectric technology eliminates the need for external oscillators
• Harmonic operational mode provides consistent audio output for clear indication
• Robust construction supports operation across a wide industrial temperature range

Applications

• Electronic equipment audible indication
• Chime alert systems in control panels
• Industrial alarm signaling devices

Procurement Notes

Verify the specific suffix designation against official Mallory Sonalert documentation to confirm electrical characteristics and terminal type compatibility. Ensure the selected variant matches the required operating voltage and mounting configuration for the target application. Cross-reference part numbers with authorized distributors to guarantee authenticity and traceability of the component.

Selection Notes

Select this component when a self-contained, high-intensity acoustic indicator is required for panel-mounted applications. Consider the internal drive capability to simplify circuit design by removing the need for separate oscillator components. Evaluate the physical dimensions and terminal style to ensure mechanical fit within the enclosure constraints.

Part Context

This component belongs to the SC series of industrial alarms and buzzers manufactured by Mallory Sonalert Products Inc. The series is characterized by robust piezoelectric construction suitable for demanding environments. These devices are engineered to provide reliable audible signaling for various electronic and industrial control systems.

Replacement Considerations

Consult official Mallory Sonalert substitution guides for verified alternatives. Generic piezo buzzers may not replicate the specific harmonic tone or internal drive requirements.
