SC22-04-95H

Overview

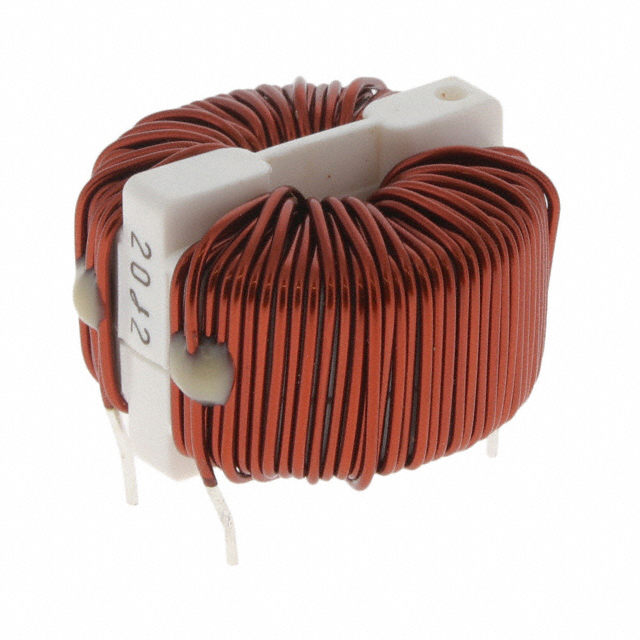

The KEMET SC22-04-95H is a through-hole common mode choke belonging to the standard SC series. It features a nickel-zinc ferrite core and offers an inductance of 9.45 mH with a maximum DC current rating of 4.3 A. The component has a low DC resistance of 80 mΩ and supports AC voltages up to 250 V. It operates within a temperature range of -25 °C to 120 °C, utilizes soft soldered terminals, and complies with RoHS standards.

Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Utilizes nickel-zinc ferrite material for stable magnetic performance
• Designed for through-hole mounting with soft soldered wire leads

Applications

• Power supply input filtering
• Data line noise suppression
• EMI reduction in industrial equipment

Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical drawings before integration. Confirm that the operating environment remains within the specified -25 °C to 120 °C temperature range to ensure reliability. Ensure the circuit voltage does not exceed the 250 V AC rating and that the current load stays below the 4.3 A limit to prevent saturation or overheating.

Selection Notes

Select this component when high current handling capability is required alongside common mode noise filtration. The 4.3 A rating makes it suitable for power stages where lower-current chokes would saturate. Verify that the through-hole form factor fits the PCB layout constraints and that the lead pitch accommodates the board design.

Part Context

This part belongs to KEMET's SC series of standard common mode chokes. These components are engineered for general-purpose electromagnetic interference suppression in electronic circuits. The series provides reliable filtering solutions for various industrial and commercial applications requiring robust noise attenuation.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
