SC22-06-60J

Overview

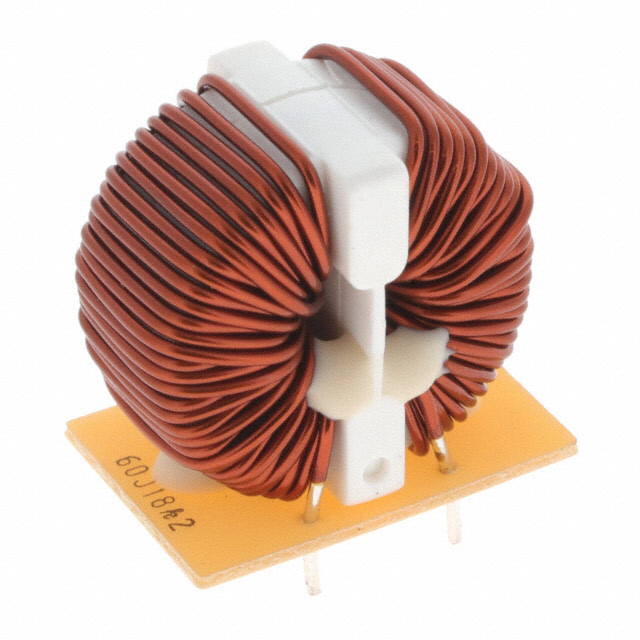

The KEMET SC22-06-60J is a through-hole common mode choke designed for electromagnetic interference suppression. It features an inductance of 6 mH at 10 kHz and supports a maximum current of 6 A with a DC resistance of 46 mΩ. The component operates within a temperature range of -25°C to +120°C and is rated for 250 VAC.

Feature Summary

• Provides effective common mode noise attenuation for differential signal lines
• Constructed with high thermal stability materials for reliable operation under elevated temperatures
• Utilizes a robust through-hole mounting configuration for secure mechanical integration

Applications

• Electromagnetic interference filtering in power supply circuits
• Noise suppression in industrial control systems
• Signal integrity protection in communication interfaces

Procurement Notes

Verify the specific inductance tolerance and current rating requirements against the official datasheet before procurement. Confirm that the operating environment temperature remains within the specified -25°C to +120°C range to ensure long-term reliability and performance stability.

Selection Notes

Select this component when a 6 mH inductance value is required for common mode noise reduction in applications handling up to 6 A. Ensure the physical footprint and lead spacing are compatible with the target PCB layout and that the voltage rating meets the system's AC line requirements.

Part Context

This component belongs to KEMET's SC series of wire wound inductors, which are engineered for general-purpose filtering and EMI suppression tasks. The series offers various inductance values and current ratings to accommodate diverse circuit design needs across consumer and industrial electronics.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Ensure any replacement maintains identical inductance, current handling, and physical dimensions to guarantee circuit compatibility.
