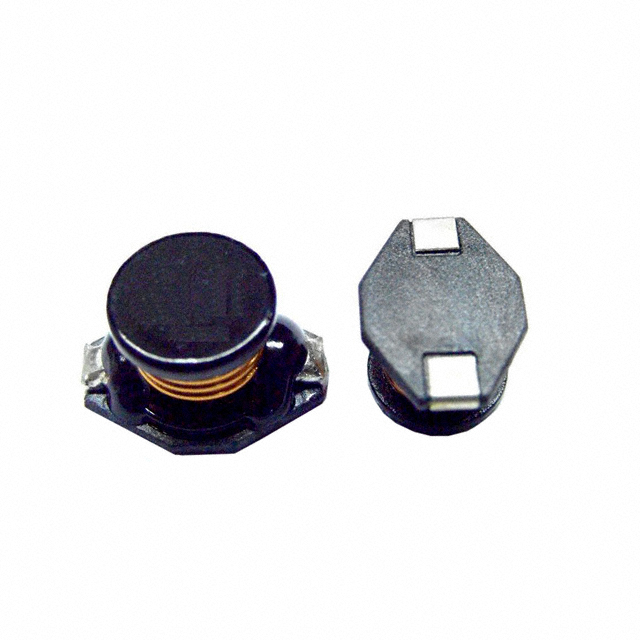

SC3326F-100 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 10UH 5A 31 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SC3326F-100
- Description：FIXED IND 10UH 5A 31 MOHM SMD
- Series：SC3326F
- Mfr：Signal Transformer
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：5:00 AM
- Current - Saturation (Isat)：8.2A
- Shielding：Unshielded
- DC Resistance (DCR)：31mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.530" L x 0.390" W (13.45mm x 9.90mm)
- Height - Seated (Max)：0.315" (8.00mm)
- Features：-
Fixed Inductors datasheet and documents for SC3326F-100
Fixed Inductors Overview
The SC3326F-100 is a surface-mount power inductor from Signal Transformer. It features an inductance of 10 uH and a maximum DC current rating of 8.20A. The component has a maximum DC resistance of 31mohms. Testing is conducted at a frequency of 100KHz. The device is designed for SMD applications.
Fixed Inductors Feature Summary
- Surface mount construction
- Wire wound design
- Unshielded configuration
Fixed Inductors Applications
- Power supply circuits
- Signal processing systems
- Electronic filtering applications
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet to confirm electrical tolerances and thermal characteristics before integration. Ensure that the selected component meets all required operational standards for the intended application environment. Cross-reference official documentation for any updates regarding material composition or manufacturing changes.
Fixed Inductors Selection Notes
Evaluate the inductance value against circuit requirements to ensure proper performance. Consider the current rating to prevent saturation under load conditions. Assess the physical dimensions for compatibility with the printed circuit board layout. Review the operating temperature range to guarantee reliability in the target environment.
Fixed Inductors Part Context
This component belongs to the SC3326F series of fixed inductors manufactured by Signal Transformer. The series includes various inductance values tailored for different power management needs. These components are part of the broader portfolio of magnetic solutions offered by the brand.
Fixed Inductors Replacement Considerations
Consult official distributor catalogs for compatible alternatives within the same series. Verify that substitute parts match the required inductance, current rating, and physical footprint. Ensure that any replacement maintains the necessary electrical specifications for the circuit.
