SC616PR

Overview

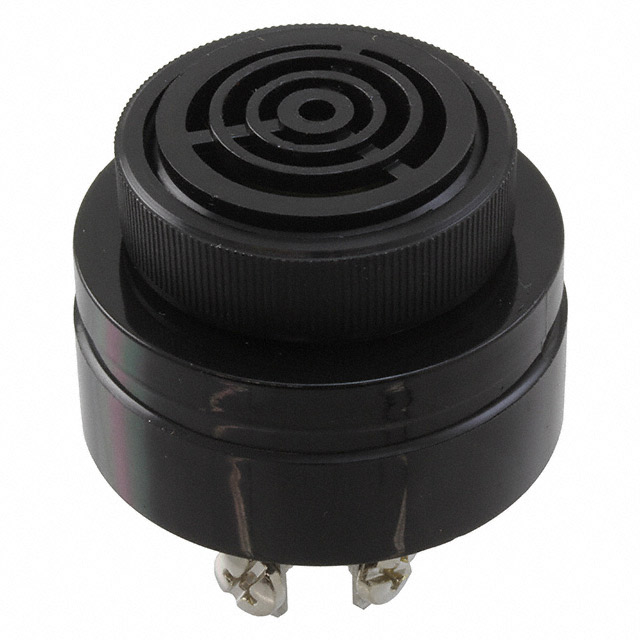

The SC616PR is an industrial piezoelectric buzzer from the Mallory Sonalert SC series, designed for panel mounting. It operates on a DC voltage range of 6 to 16VDC and produces a fast pulse tone at a frequency of 2900Hz. The unit features screw terminals for connection and has physical dimensions of 43 mm x 33 mm. It is classified as an audio indicator suitable for demanding industrial environments.

Feature Summary

• Generates a fast pulse acoustic signal at 2900Hz
• Operates within a 6-16VDC input range
• Features screw terminal connections for secure wiring
• Designed for direct panel mounting applications

Applications

• Industrial equipment status indication
• Factory automation alarm systems
• Control panel warning signals

Procurement Notes

Verify the specific suffix against official Mallory Sonalert documentation to confirm the exact acoustic output characteristics, such as sound pressure level and current draw. Ensure the required operating voltage aligns with the 6-16VDC specification before integration into the target circuit design.

Selection Notes

Select this component when a distinct fast pulse alert is required for industrial machinery. The 43mm x 33mm form factor fits standard panel cutouts. Confirm that the screw terminal interface matches the existing wiring harness or PCB layout constraints of the assembly.

Part Context

This device belongs to the SC series of industrial buzzers manufactured by Mallory Sonalert Products Inc. The series is characterized by robust construction and reliable performance in harsh environments. These units are widely recognized standards for audible signaling in commercial and industrial sectors.

Replacement Considerations

Consult official Mallory Sonalert cross-reference guides for verified substitutes. Ensure any replacement maintains the 2900Hz frequency and fast pulse modulation to preserve system compatibility.
