Product Detailed Parameters
- Description：CMC 13MH 2A 2LN TH
- Series：SCF
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：115mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" L x 0.472" W (15.00mm x 12.00mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：13 mH @ 10 kHz
- Qualification：-
Download product information
Overview

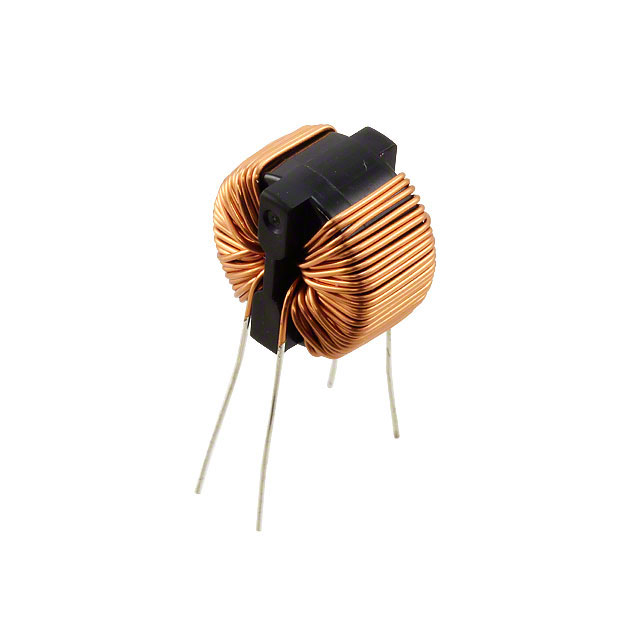

The KEMET SCF-02-1300 is a single-channel common mode filter choke designed for through-hole PCB mounting. It features an inductance of 13 mH and supports a maximum DC current of 2 A. The component exhibits a maximum DC resistance of 115 mohms and operates within a temperature range of -40°C to +120°C. Physical dimensions include a height of 15 mm, width of 12 mm, and length of 15 mm.
Feature Summary
- Provides common mode noise suppression for AC line applications
- Utilizes through-hole termination for secure PCB integration
- Constructed with nanocrystalline core technology for high permeability
Applications
- Consumer electronics power supplies
- AC line filtering in home appliances
- Common mode choke circuits in industrial equipment
Procurement Notes
Verify the specific ordering suffix and packaging configuration against the manufacturer's latest datasheet before procurement. Confirm that the through-hole footprint and lead spacing match the target PCB design. Ensure the operating environment remains within the specified -40°C to +120°C thermal limits to maintain performance integrity and reliability standards.
Selection Notes
Select this component when a 13 mH inductance value is required for common mode noise reduction in single-phase AC lines. The 2 A current rating suits moderate power applications. Verify that the 115 mohms DC resistance aligns with system efficiency requirements. Ensure the vertical through-hole package fits the available board space and manufacturing constraints.
Part Context
This part belongs to the KEMET SCF series, which includes various common mode chokes and filters. The series utilizes nanocrystalline metal cores to achieve ultra-high inductance and permeability. These components are engineered for effective electromagnetic interference suppression in power supply and electronic circuit applications.
Replacement Considerations
Direct substitutes must match the 13 mH inductance, 2 A current rating, and through-hole package. Verify equivalent DC resistance and thermal characteristics. Cross-reference with other SCF series variants or comparable common mode chokes from alternative manufacturers ensuring identical electrical and mechanical specifications.
