Product Detailed Parameters

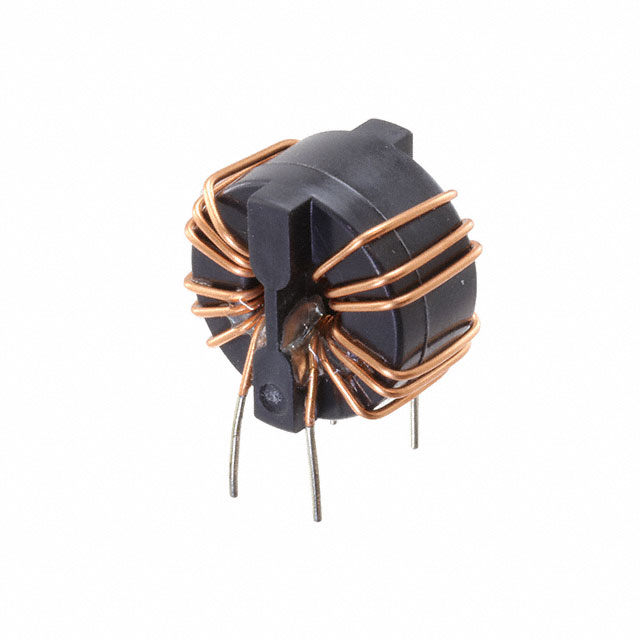

- Description：CMC 600UH 5A 2LN TH
- Series：SCF
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：18mOhm
- Voltage Rating - DC：250V
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" Dia (15.00mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：600 µH @ 10 kHz
- Qualification：-
Download product information
Overview
The KEMET SCF-05-060 is a common mode choke filter designed for power line applications. It features an inductance of 600 µH measured at 10 kHz and supports a maximum current rating of 5A. The component has a maximum DC resistance of 18mOhm and is rated for 250V AC and 250V DC. It is constructed as a two-line filter suitable for EMI filtering and noise suppression.
Feature Summary
- Provides effective EMI filtering and noise suppression for power lines
- Features ultra-high inductance and permeability characteristics
- Utilizes nanocrystalline metal core technology
Applications
- Power line filtering
- EMI filtering
- Noise suppression
Procurement Notes
Verify the specific datasheet version to confirm electrical parameters such as inductance tolerance and current ratings. Ensure the component meets required safety standards for the intended power line application. Cross-reference with official KEMET documentation to validate compatibility with system voltage and current requirements before procurement.
Selection Notes
Select this component when high inductance is required for common mode noise reduction in power circuits. Consider the 5A current rating and low DC resistance for efficiency. Evaluate the physical dimensions and mounting style against board space constraints. Verify that the 600 µH inductance value aligns with the target frequency range for effective filtering performance.
Part Context
This component belongs to the KEMET SCF series, which includes three-phase coils and toroidal designs. The series is characterized by ultra-high inductance and permeability, utilizing nanocrystalline metal cores. This specific model is part of a lineup focused on robust power line filtering solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data.
FAQ
What is the inductance value of the SCF-05-060?
The inductance is 600 µH, measured at a frequency of 10 kHz.
What is the maximum current rating for this common mode choke?
The maximum current rating is 5A.
