SCF19XV-100-1R1A009JV

Overview

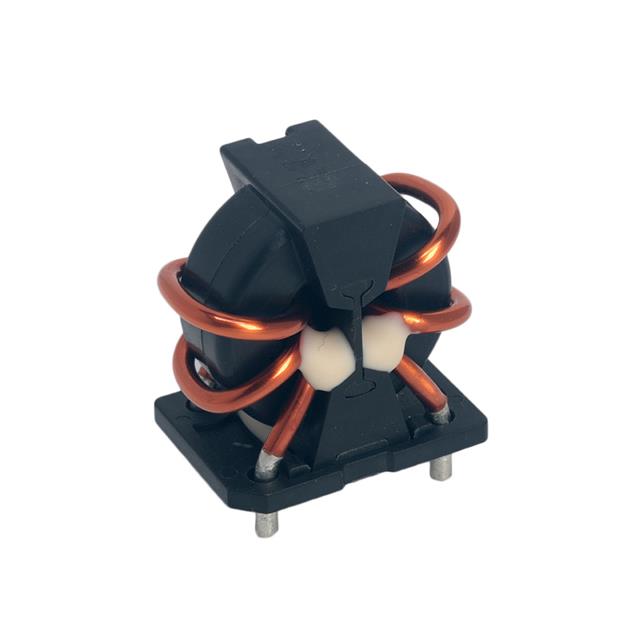

The KEMET SCF19XV-100-1R1A009JV is a single-channel common mode choke designed for automotive applications. It features an inductance of 200 µH and supports a maximum DC current of 22 A. The component has a maximum DC resistance of 1.38 mΩ and operates within a temperature range of -40°C to +150°C. It is AEC-Q200 qualified and utilizes through-hole mounting.

Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High current handling capability up to 22 A
• Low DC resistance for efficient power transmission
• Wide operating temperature range suitable for harsh environments

Applications

• Automotive power supply circuits
• Electric vehicle (EV) systems
• Hybrid electric vehicle (HEV) components
• On-board charging systems

Procurement Notes

Verify the specific suffix codes against official KEMET documentation to ensure correct tolerance and packaging specifications. Confirm that the AEC-Q200 qualification aligns with your project's automotive grade requirements. Check for any recent lifecycle notices or obsolescence warnings directly from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when high current capacity and low impedance are critical for noise suppression in automotive power lines. Ensure the PCB layout accommodates the through-hole package dimensions and thermal requirements. Compare the 200 µH inductance value against system-specific filtering needs to verify adequate common mode rejection at target frequencies.

Part Context

This part belongs to the SCF-XV series, which is engineered specifically for automotive electronics. The series emphasizes robustness and compliance with strict automotive industry standards. It serves as a key component for electromagnetic interference (EMI) suppression in high-power automotive applications.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference parameters such as inductance, current rating, and physical dimensions to ensure compatibility. Do not assume interchangeability with non-automotive grade chokes without verifying AEC-Q200 status.
