Product Detailed Parameters
- Description：CMC 200UH 22A 2LN TH AEC-Q200
- Series：SCF-XV
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：22A
- DC Resistance (DCR) (Max)：1.43mOhm
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：-40°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" L x 1.083" W (30.00mm x 27.50mm)
- Height (Max)：0.783" (19.90mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：200 µH @ 100 kHz
- Qualification：-
Download product information
Overview

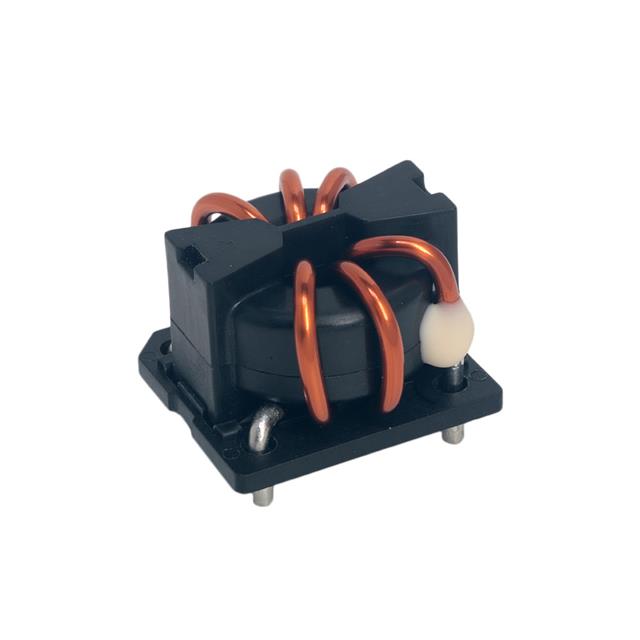

The KEMET SCF19XV-220-1R6A004JH is a through-hole common mode choke from the SCF-XV series, rated for 1000 V and 22 A DC current. It features an inductance of 200 µH (0.2 mH) with a maximum DC resistance of 1.43 mΩ. The component operates within a temperature range of -40°C to +150°C and holds AEC-Q200 qualification.
Feature Summary
- Provides high common mode noise suppression for automotive power circuits
- Supports high continuous DC current handling capabilities
- Engineered for robust performance under extreme thermal conditions
Applications
- Automotive power distribution systems
- On-board charger (OBC) input filtering
- DC-DC converter EMI suppression
Procurement Notes
Verify the specific suffix against official KEMET documentation to confirm exact electrical tolerances and packaging details. Ensure the procurement channel provides valid traceability for AEC-Q200 certified components intended for automotive applications.
Selection Notes
Select this component when designing circuits requiring high current capacity alongside significant common mode noise attenuation. The low DC resistance minimizes power loss, while the wide operating temperature range ensures reliability in demanding automotive environments.
Part Context
This part belongs to the SCF-XV series of automotive-grade common mode chokes. These components are specifically designed to meet the rigorous reliability standards required for modern electric and hybrid vehicle power electronics.
Replacement Considerations
Consult official KEMET substitution guides for verified equivalents. Cross-referencing requires matching inductance, current rating, and physical footprint constraints.
