SCF25XV-130-1R5A012JH

Overview

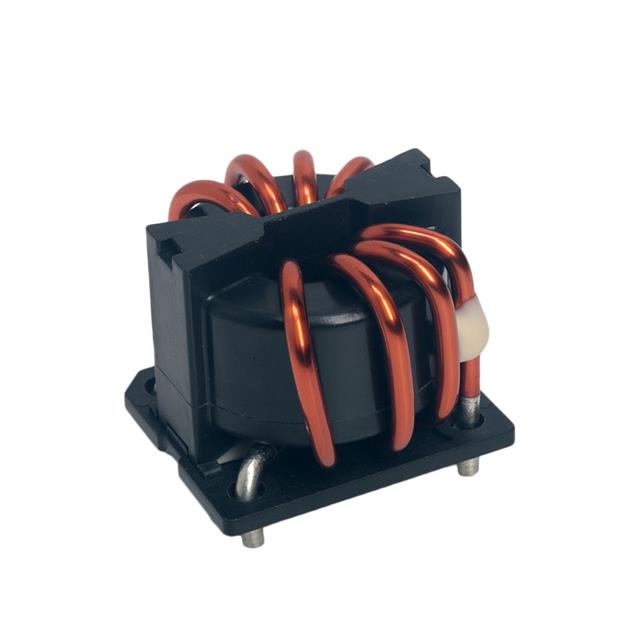

The KEMET SCF25XV-130-1R5A012JH is a common mode choke filter featuring a nanocrystal core material. It provides an inductance of 3.5 mH at 100 kHz with a maximum DC resistance of 6.43 mΩ. The component supports a current rating of 13 A and operates within a temperature range of -40°C to +130°C. Designed for through-hole mounting, it offers high voltage isolation capabilities suitable for demanding power supply applications.

Feature Summary

• Utilizes nanocrystal core material for enhanced magnetic performance
• Supports high current ratings up to 13 Amperes
• Designed for through-hole PCB mounting configurations

Applications

• AC line filters
• Power supplies
• Home appliances

Procurement Notes

Verify the specific suffix JH against official KEMET documentation to confirm exact electrical tolerances and packaging details. Ensure compatibility with existing board layouts regarding through-hole spacing and height constraints. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when high current handling and low DC resistance are required in compact form factors. The nanocrystal core offers advantages over traditional ferrite cores in specific frequency ranges. Evaluate thermal management requirements given the 13 A rating and operating temperature limits.

Part Context

This model belongs to the KEMET SCF-XV series of common mode coils. The series utilizes nanocrystal core technology to achieve high performance in power filtering applications. These components are designed to meet rigorous automotive and industrial standards, including AEC-Q200 qualification where applicable.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Direct replacements must match the 3.5 mH inductance, 13 A current rating, and 6.43 mΩ DCR specifications. Verify pinout compatibility and mechanical dimensions before integration.
