SCF27-10-1300

Overview

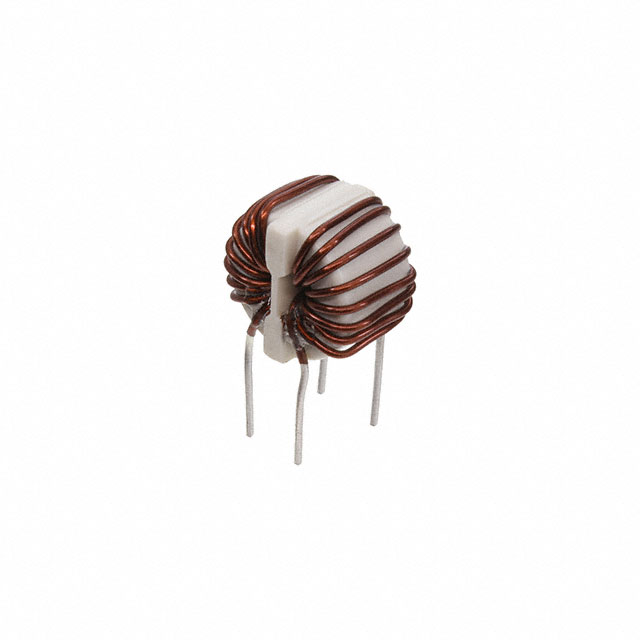

The KEMET SCF27-10-1300 is a common mode choke filter designed for AC line applications. It features an inductance of 13 mH and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 15 mOhms and operates within a temperature range of -40°C to +105°C. Rated for 250 V, it utilizes a through-hole mounting style with a compact form factor suitable for space-constrained designs.

Feature Summary

• High-inductance design for effective noise suppression
• Compact physical footprint for dense PCB layouts
• Through-hole construction for robust mechanical stability

Applications

• AC line filtering
• EMI suppression in power supplies
• Noise reduction in electronic equipment input stages

Procurement Notes

Verify the specific voltage rating and current handling capabilities against the target circuit requirements before integration. Confirm that the through-hole package dimensions align with the printed circuit board layout constraints. Ensure the operating temperature range meets the environmental conditions of the final assembly. Cross-reference the manufacturer datasheet for detailed mechanical drawings and soldering recommendations.

Selection Notes

Select this component when high inductance values are required in a compact package for common mode noise attenuation. The low DC resistance minimizes power loss during operation. Consider the through-hole mounting method if mechanical stress resistance is prioritized over surface area efficiency. Evaluate the thermal performance to ensure reliable operation under continuous load conditions.

Part Context

This component belongs to the SCF series of compact, high-inductance coils manufactured by KEMET. The series is engineered to provide significant noise filtering in minimal space. It serves as a critical passive element in electromagnetic interference mitigation strategies for various industrial and commercial electronic systems requiring robust signal integrity.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers within the SCF series or equivalent product lines. Ensure any replacement matches the electrical specifications and physical dimensions to maintain system compatibility.
