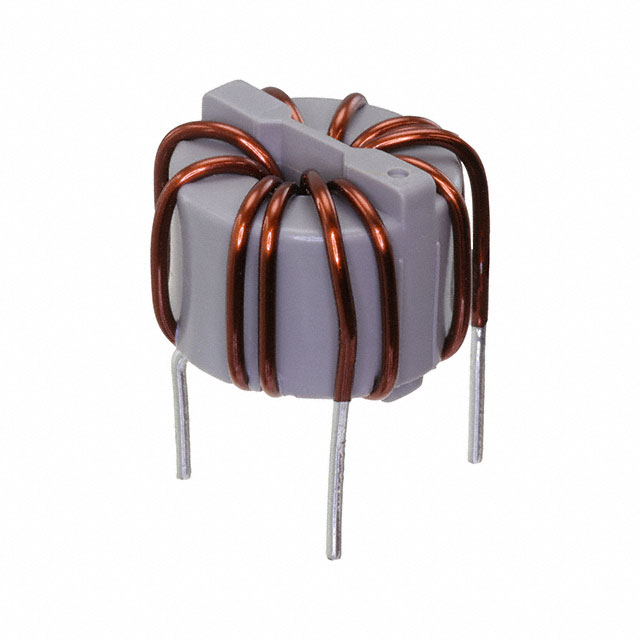

SCF27-15-700H

$25.46

Description：CMC 7MH 15A 2LN TH
Series：SCF
Mfr：KEMET
Package：Tray

SKU:33890fc0c41e Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 7MH 15A 2LN TH
Series：SCF
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：15A
DC Resistance (DCR) (Max)：8.5mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.378" Dia (35.00mm)
Height (Max)：0.984" (25.00mm)
Package / Case：Horizontal, No Base, 4 PC Pin
Inductance @ Frequency：7 mH @ 10 kHz
Qualification：-

Download product information

SCF27-15-700H

Overview

The KEMET SCF27-15-700H is a through-hole common mode choke from the SCF series, designed for AC line filtering. It features an inductance of 7 mH at 10 kHz and supports a maximum current of 15 A with a DC resistance of 8.5 mΩ. Rated for 250 VAC, this component utilizes a nanocrystalline core to provide effective noise suppression in power supply applications.

Feature Summary

Utilizes nanocrystalline core technology for high-performance magnetic properties
Designed for through-hole PCB mounting with wire terminations
Engineered for high current handling capabilities in AC line filtering

Applications

AC line filters
Power supplies
Home appliances

Procurement Notes

Verify the specific part number SCF27-15-700H against official KEMET documentation to confirm current availability and manufacturing status. Ensure that the required inductance, current rating, and physical dimensions align with your circuit design specifications before procurement.

Selection Notes

Select this component when high current capacity and low DC resistance are critical for AC line filtering applications. The nanocrystalline core offers advantages in size and performance compared to traditional ferrite cores for similar inductance values.

Part Context

This component belongs to the KEMET SCF series of common mode chokes. These devices are specifically engineered for power electronics applications requiring robust noise suppression and high current handling in a through-hole package format.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-referencing with generic components may result in mismatched electrical characteristics or physical dimensions.
