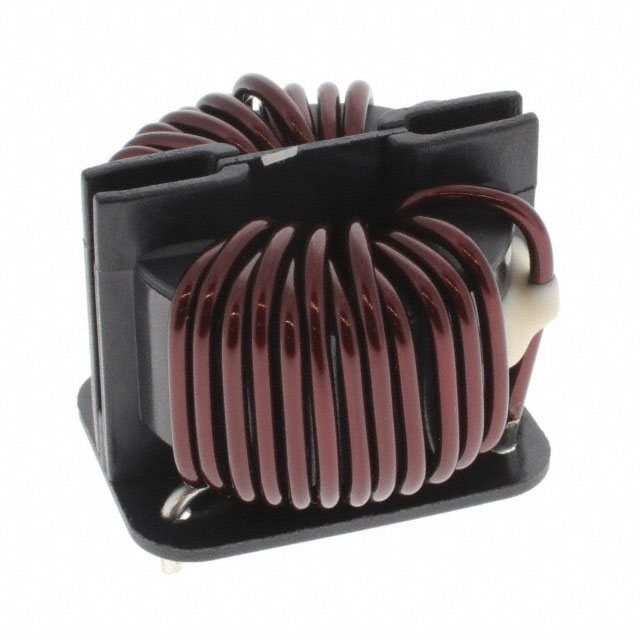

SCF33B-400-1R6C009JH

$12.83

Description：CMC 900UH 40A 2LN TH
Series：SCF-J/JH
Mfr：KEMET
Package：Tray

SKU:36383fa22193 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 900UH 40A 2LN TH
Series：SCF-J/JH
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：40A
DC Resistance (DCR) (Max)：1.7mOhm
Voltage Rating - DC：500V
Voltage Rating - AC：500V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.969" Dia (50.00mm)
Height (Max)：1.378" (35.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：900 µH @ 100 kHz
Qualification：-

Download product information

SCF33B-400-1R6C009JH

Overview

The KEMET SCF33B-400-1R6C009JH is a common mode filter featuring a nanocrystalline metal core. It provides an inductance of 900 µH at 100 kHz with a maximum DC resistance of 1.7 mΩ. The component supports a rated current of 40 A and operates within a temperature range of -25°C to +120°C.

Feature Summary

Utilizes nanocrystalline metal core technology for ultra-high inductance and permeability.

Applications

AC line filtering
Common mode noise suppression

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm technical specifications. Ensure compatibility with system requirements regarding current ratings, inductance values, and operating temperature ranges before procurement.

Selection Notes

Select this component for applications requiring high inductance in a compact form factor. The nanocrystalline core offers superior performance characteristics compared to traditional ferrite cores, suitable for demanding EMI filtering tasks.

Part Context

This component belongs to the SCF series of common mode chokes manufactured by KEMET. These filters are designed for through-hole mounting and are intended for use in power supply circuits to mitigate electromagnetic interference.

Replacement Considerations

Consult official KEMET substitution guides or datasheets for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
