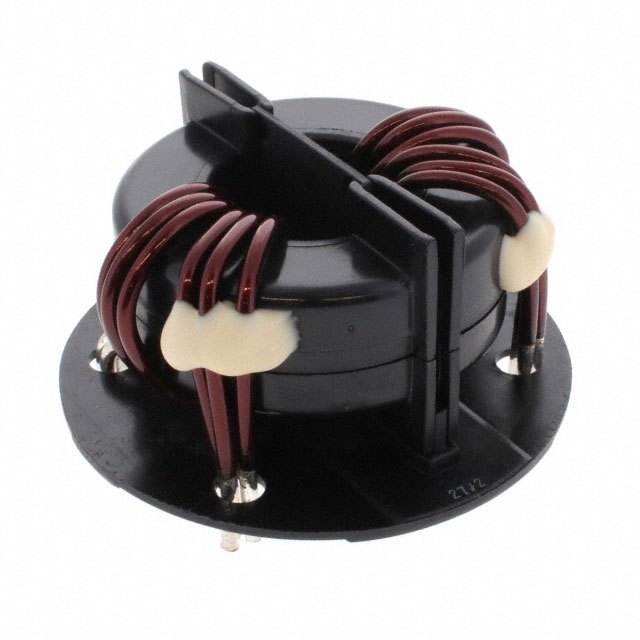

SCF47B-600-2R2C0005JH

$15.68

Description：CMC 50UH 60A 2LN TH
Series：SCF-J/JH
Mfr：KEMET
Package：Tray

SKU:beaf02c44ca1 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 50UH 60A 2LN TH
Series：SCF-J/JH
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：60A
DC Resistance (DCR) (Max)：0.31mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.756" Dia (70.00mm)
Height (Max)：1.437" (36.50mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：50 µH @ 100 kHz
Qualification：-

Download product information

SCF47B-600-2R2C0005JH

Overview

The KEMET SCF47B-600-2R2C0005JH is a common mode filter featuring a nanocrystalline metal core. It provides an inductance of 50 µH and supports a maximum DC current of 60 A. The component has a maximum DC resistance of 0.31 Ω. It operates within a temperature range of -40°C to +120°C.

Feature Summary

Utilizes a nanocrystalline metal core for ultra-high permeability
Designed as a toroidal coil for AC line filtering applications

Applications

AC line filters
Common mode noise suppression

Procurement Notes

Verify the specific datasheet version for the SCF47B series to confirm exact electrical tolerances and mechanical dimensions. Ensure the operating environment remains within the specified -40°C to +120°C range. Confirm that the 60A current rating aligns with the system's peak load requirements before finalizing procurement.

Selection Notes

Select this component when high permeability and ultra-high inductance are required for common mode noise reduction. The nanocrystalline core offers advantages over traditional ferrite cores in specific frequency ranges. Verify that the 50 µH inductance value meets the circuit's filtering specifications.

Part Context

This part belongs to the KEMET SCF-X coil series, which features toroidal coils with nanocrystalline metal cores. The series is characterized by ultra-high inductance and permeability capabilities, designed for robust performance in demanding electromagnetic interference suppression scenarios.
