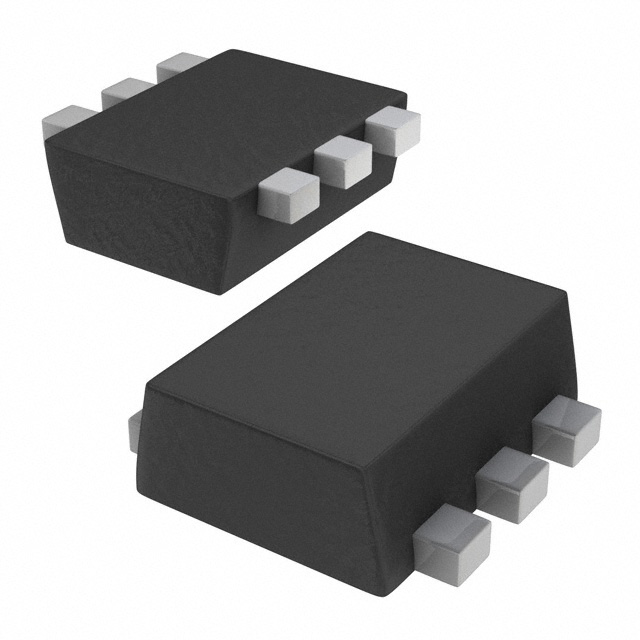

SCH2202-TL-E

SCH2202-TL-E

$0.07

Description：TRANS 2NPN DUAL 15V 600MA 6-SCH
Series：-

SKU:5a3d128e4aac Category: Bipolar Transistor Arrays Brand: onsemi

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANS 2NPN DUAL 15V 600MA 6-SCH
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Transistor Type：2 NPN (Dual)
Current - Collector (Ic) (Max)：600mA
Voltage - Collector Emitter Breakdown (Max)：15V
Vce Saturation (Max) @ Ib, Ic：300mV @ 10mA, 200mA
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：300 @ 10mA, 2V
Power - Max：400mW
Frequency - Transition：330MHz
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-SMD, Flat Leads
Supplier Device Package：6-SCH
Grade：-
Qualification：-

Download product information

SCH2202-TL-E

FAQ

Is the SCH2202-TL-E a standard discrete component?

No, this part number is not found in onsemi's public catalog. It appears to be an internal designation or a custom product.

Can I find a datasheet for SCH2202-TL-E?

Publicly available datasheets do not exist for this specific identifier. Verification with onsemi sales is required.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
