SCM05-600M-RC

$0.83

Description：CMC 300MA 2LN 60 OHM SMD
Series：SCM
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:11693990e328 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 300MA 2LN 60 OHM SMD
Series：SCM
Mfr：Allied Components International
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：400mOhm
Voltage Rating - DC：20V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)：0.043" (1.10mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：60 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

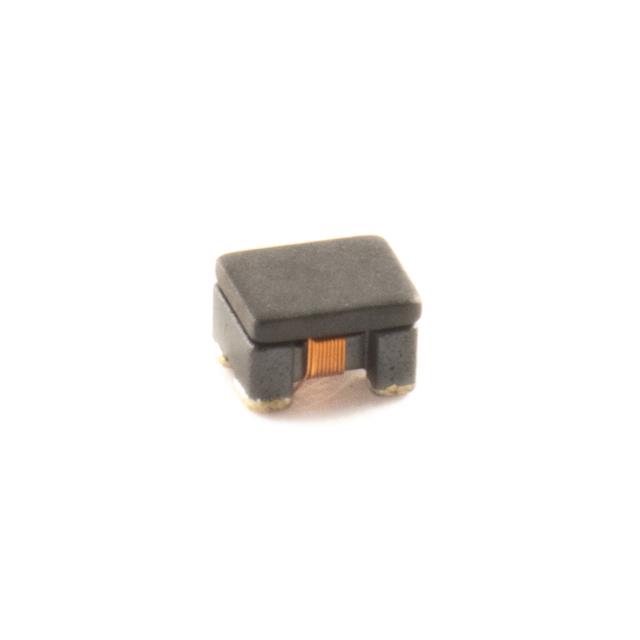

SCM05-600M-RC

Overview

The SCM05-600M-RC is a surface-mount common mode choke manufactured by Allied Components International, designed for USB 3.0 signal line filtering. It features a dual-line configuration with a rated current of 300mA and a maximum DC resistance of 400mOhm. The component exhibits an impedance of 60 Ohms at the specified frequency. Its physical dimensions include a maximum height of 0.043 inches (1.10mm), ensuring compatibility with standard PCB layouts.

Feature Summary

Provides common mode noise suppression for high-speed data lines
Designed specifically for USB 3.0 interface applications
Surface-mount construction for automated assembly

Applications

USB 3.0 port protection circuits
Signal integrity enhancement in high-speed data transmission
Common mode noise filtering in embedded communication systems

Procurement Notes

Verify the specific impedance value and current rating against the official datasheet before integration. Confirm that the package dimensions and pinout match the target PCB footprint. Ensure the supplier provides authentic components from Allied Components International to guarantee performance reliability in sensitive USB 3.0 applications.

Selection Notes

Select this component when designing for USB 3.0 interfaces requiring common mode noise reduction. Consider the 300mA current rating and 60 Ohm impedance characteristics to ensure compatibility with the signal line requirements. Evaluate the low DC resistance to minimize signal loss while maintaining effective noise filtration capabilities.

Part Context

This part belongs to the SCM05 series of common mode chokes from Allied Components International. The series includes variants such as SCM05-121M-RC, SCM05-161M-RC, and SCM05-900M-RC, which offer different impedance and current ratings. These components are engineered for compact electronic designs requiring reliable signal filtering in small form factors.
