Product Detailed Parameters
- Description：CMC 370MA 2LN 120 OHM SMD
- Series：SCM20
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：370mA
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height (Max)：0.083" (2.10mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：120 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

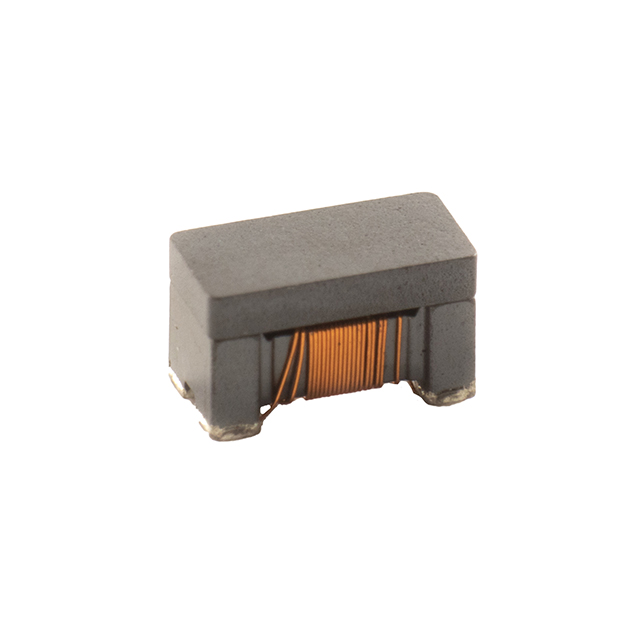

The SCM20-121T-RC is a surface mount common mode choke manufactured by Allied Components International. It is specifically designed for USB 2.0 applications to suppress electromagnetic interference on data lines. The component utilizes a shielded construction to minimize external magnetic field radiation and reduce sensitivity to external fields, ensuring signal integrity in high-speed digital circuits.
Feature Summary
- Shielded design for reduced electromagnetic interference
- Optimized for USB 2.0 data line protection
- Surface mount package for automated assembly
Applications
- USB 2.0 interface circuits
- Data line filtering in consumer electronics
- Portable device connectivity modules
Procurement Notes
Verify the specific suffix 'T' against the manufacturer's official documentation to confirm tape-and-reel packaging specifications. Ensure the part number matches the exact electrical requirements for the target USB 2.0 application before procurement.
Selection Notes
Select this component when shielded common mode chokes are required for USB 2.0 interfaces. Compare impedance characteristics and current ratings with similar models in the SCM20 series to ensure compatibility with the specific circuit design constraints.
Part Context
This component belongs to the SCM20 series of surface mount common mode chokes from Allied Components International. The series includes variants such as SCM20-121M-RC, which share similar form factors but may differ in electrical parameters or packaging options.
Replacement Considerations
Cross-reference tools indicate parametrically similar parts from manufacturers like Coilcraft, including the 0805USB-902MLB and 1206USB-113MLC series, which serve as potential substitutes for USB 2.0 common mode filtering.
