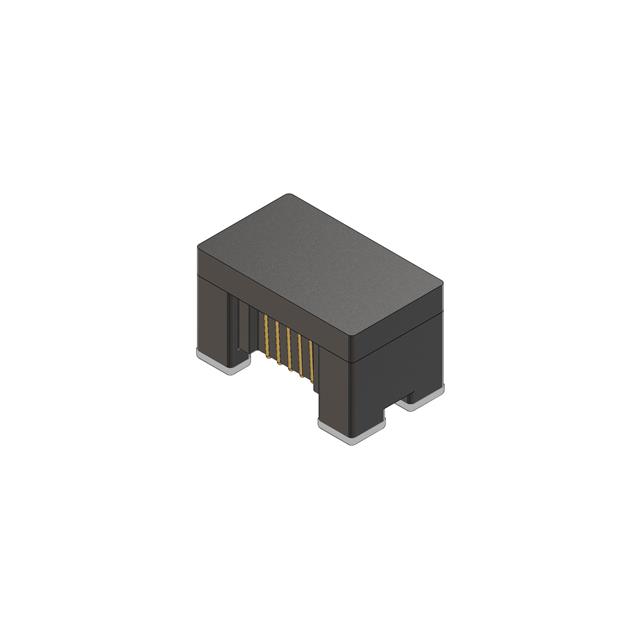

SCM2012FS121MDG

$0.09

Description：CMC 370MA 2LN 120 OHM SMD
Series：SCM2012FS
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b5a7a0fa364b Category: Common Mode Chokes Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 370MA 2LN 120 OHM SMD
Series：SCM2012FS
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：370mA
DC Resistance (DCR) (Max)：300mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)：0.055" (1.40mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：120 Ohms @ 100 MHz

Download product information

SCM2012FS121MDG

Overview

The SCM2012FS121MDG is a surface mount common mode choke manufactured by INPAQ Technology Co., Ltd. This component features two lines and provides an impedance of 120 Ohms at 100 MHz. It supports a current rating of 370mA with a DC resistance (DCR) of 300mOhm.

Feature Summary

Surface mount construction for automated assembly
Dual-line configuration for common mode noise suppression
Ferrite core design for EMI/EMC filtering

Applications

Data exchange interfaces
Location information systems
Bluetooth modules

Procurement Notes

Verify the complete part number including suffixes to ensure correct specifications. Confirm lead times with authorized distributors as manufacturing schedules vary. Check RoHS compliance certificates if required for specific regulatory environments. Ensure storage conditions meet manufacturer guidelines to maintain component integrity before soldering.

Selection Notes

Select this component based on the required impedance value of 120 Ohms at 100 MHz and the 370mA current handling capability. The 300mOhm DCR is suitable for low-power signal lines. Verify that the surface mount package dimensions fit the PCB layout constraints.

Part Context

INPAQ Technology specializes in circuit protection components and antenna products for computing, communication, consumer electronics, and automotive applications. This common mode choke belongs to their EMI/EMC solution portfolio, designed to suppress electromagnetic interference in sensitive electronic circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or contact INPAQ Technology directly for verified equivalent components that match the electrical and mechanical specifications.
